Scanning device USK-5TM

Advanced Measurement Equipment

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

Description

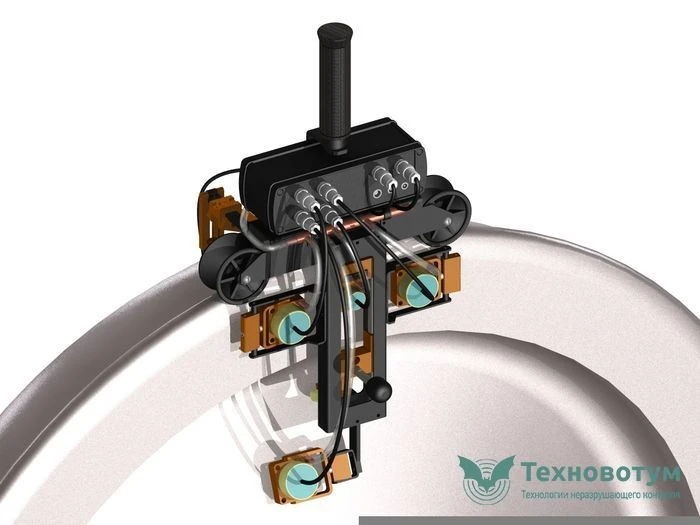

Scanning device USK-5TM is designed for ultrasonic inspection of solid rolled wheels of freight and passenger wagons. It is used in wheel shops of wagon depots after rolling out of wheelsets, their installation on the stand for inspection and certification. USK-5TM can work only together with Tomographik 5M flaw detector.

Specifications

Average service life, at least 5 a

MTBF, max. 1600

Weight (excluding contact liquid), not more 3.8 kg

Overall dimensions of the device (length x width x height), max. 230 mm

Controlled zones, defects Cracks in the area of the groove transition of the wheel disc to the rim

Permissible thickness of the controlled wheel rim, not less than 20 mm

Monitoring facility Solid rolled wheels of wheel sets of freight and passenger wagons

Type of product according to PP RF 616 Instruments and other instruments for measurement, control and testing
