Available for Import

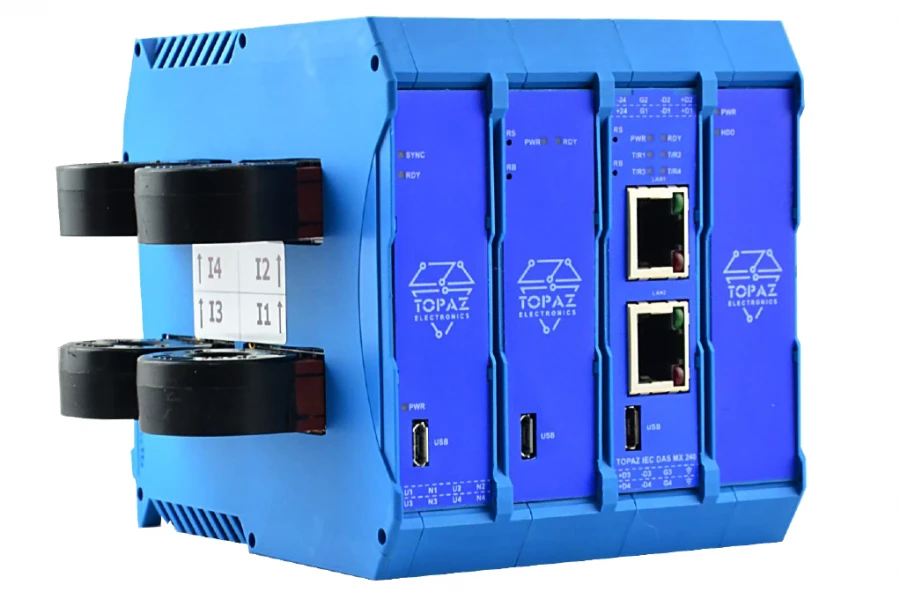

Multifunctional measuring modules TOPAZ TM PM7
Manufacturer:
Price:
Request Quote
Bulk pricing available
FOB, CIF & EXW terms available
Key Highlights
- Made in Russia - engineered for durability
- Suitable for challenging environments
- Lower cost of ownership than European alternatives
- Bulk orders available with volume discounts
- Documentation and customs clearance assistance provided
Description
Modules TOPAZ TM PM7 are produced according to technical specifications TU 26.51.43-008-89466010-2018 "Modules measuring multifunctional "TOPAZ TM PM7-Pr"".
TOPAZ TM PM7-Pr modules are designed for application in ACS and telemechanics systems, in systems of commercial and technical accounting of electric power, in systems of control and monitoring of PCE, for registration of emergency events and recording of oscillograms of currents and voltages, for detection of short-circuit and short-circuit faults in electrical networks.
The devices are referred to input-output devices.
TOPAZ TM PM7-Pr modules are designed for application in ACS and telemechanics systems, in systems of commercial and technical accounting of electric power, in systems of control and monitoring of PCE, for registration of emergency events and recording of oscillograms of currents and voltages, for detection of short-circuit and short-circuit faults in electrical networks.
The devices are referred to input-output devices.
Specifications
Type of product according to PP RF 616
Industrial control and measuring machines
Number of AC measurement channels with range up to 50A
4 pc
Function set
w; e; d; q; lw.
Number of Ethernet interfaces
1 pc
Number of RS-485 interfaces
1 pc
Number of digital inputs
8 pc
Number of discrete outputs
3 pc
Number of AC voltage measurement channels
3 pc
Number of DC voltage measurement channels
4 pc
Additional protocol IEC 61850-8-1
yes/no
Optional PRP protocol
yes/no
RTC real time clock
yes/no
SSD drive
yes/no
GSM
yes/no
GPS
yes/no
Built-in power supply
lv; 2lv; hv; 2hv
Performance groups according to GOST R 52931-2008
c2; p2
Degree of enclosure protection
ip20
Average time to restore serviceability
30
Average service life
30 a
Weight, not more
1.5 kg
Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
