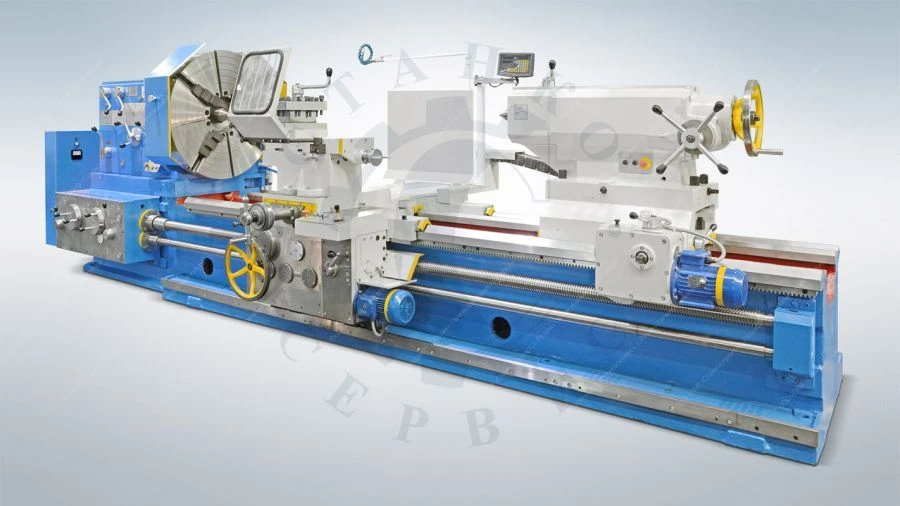

Rotary screwcutting lathe RTS117F1-3

Manual Metal Lathes

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

The machine is designed for all turning operations, including taper turning and thread cutting - metric, modular, inch

Technical Specifications

Type of product according to PP RF 616	Universal lathes and screw-cutting machines, with CNC, CNC)
Height	2000 mm
Width	2200 mm
Length	6140 mm
Roughness of the cylindrical surface of the sample product after its finish machining	Ra 2.5 µm
Accuracy class of machine tools according to GOST 8-82	?
Height of the tool to be mounted	SBVVBG mm
Machine weight	13 t
Main motion drive power	22 kW
Highest cutting force Pz	41000
Highest torque on the spindle	9.5 kNm
Speed of rapid transverse movements of the slide	1000 mm/min
Speed of rapid longitudinal movements of the caliper	3000 mm/min
Pitch limits of modular threads to be cut	0.5-24 module
Pitch limits of inch threads to be cut	24-1/4 threads per 1 inch
Step limits of metric threads to be cut	1...96 mm
Maximum lateral movement of the slide	700 mm
Maximum longitudinal movement of the slide	2700 mm
Diameter of the cylindrical bore in the spindle	128 mm
Largest diameter of the workpiece to be mounted above the bed	1200 mm
Largest diameter of the workpiece to be machined above the bed	1140 mm
Largest diameter of the workpiece to be mounted and machined above the slide	900 mm
Longest workpiece length	3000 mm
Spindle speed limits	5...500
Digital display device	Installed

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
