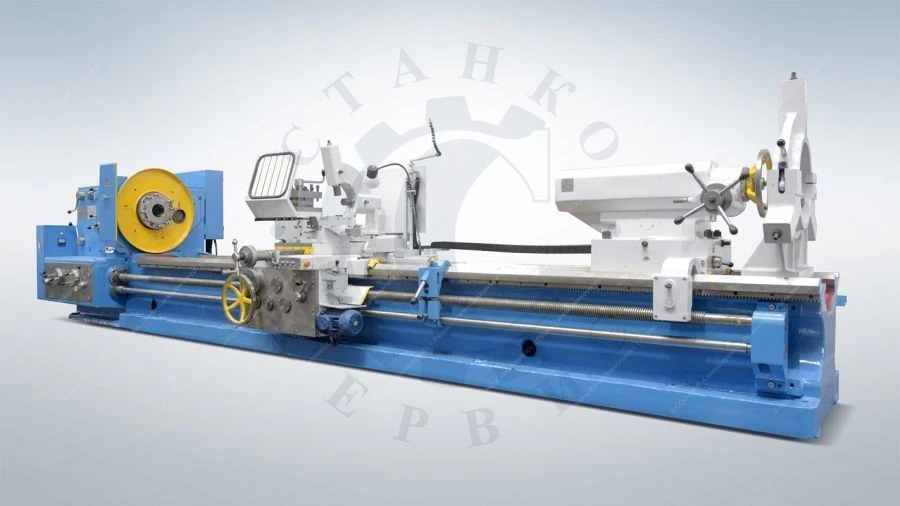

Screw-cutting lathe 1N65-6

Manual Metal Lathes

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

Available Models

Screw-cutting lathe 1N65-5

The machine is designed for all turning operations, including taper turning and thread cutting - metric, modular, inch

Technical Specifications

Type of product according to PP RF 616	Turning and screw-cutting machines (universal, with CNC, CNC)
Height	1880 mm
Width	2200 mm
Length	9210 mm
Main motion drive power	22 kW
Highest cutting force Pz	41000
Speed of rapid transverse movements of the slide	1000 mm/min
Speed of rapid longitudinal movements of the caliper	3000 mm/min
Step limits for machinable modular threads	0.5-24 module
Step limits for machinable inch threads	24-1/4 threads per 1 inch
Step limits for machinable metric threads	1...96 mm
Maximum lateral movement of the slide	700 mm
Maximum longitudinal movement of the slide	5600 mm
Diameter of the cylindrical bore in the spindle	128 mm
Largest diameter of the workpiece to be mounted and machined above the slide	650 mm
Longest workpiece length	6000 mm
Highest torque on the spindle	9.5 kNm
Accuracy class of machine tools according to GOST 8-82	?
Machine weight	16.14 t
Total power of electric motors installed on the machine tool	24.78 kW
Largest diameter of the workpiece to be machined above the bed	1000 mm
Spindle speed limits	5...500
Roughness of the cylindrical surface of the sample product after its finish machining	Ra 2.5 µm
Largest diameter of the workpiece to be mounted above the bed	1000 mm

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
