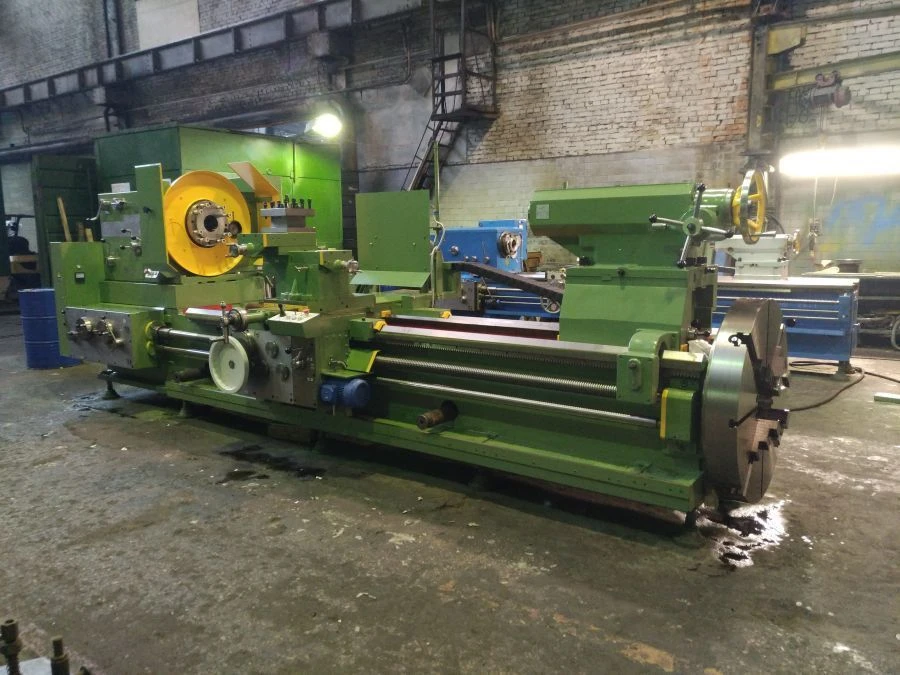

Turning and screw-cutting machine tool RT117F1-5
Bulk pricing available
FOB, CIF & EXW terms available
Key Highlights
- Made in Russia - engineered for durability
- Suitable for challenging environments
- Lower cost of ownership than European alternatives
- Bulk orders available with volume discounts
- Documentation and customs clearance assistance provided
Technical Specifications
| Type of product according to PP RF 616 | Turning and screw-cutting machines (universal, with CNC, CNC) |
|---|---|
| Length | 8140 mm |
| Width | 2200 mm |
| Height | 2000 mm |
| Largest diameter of the workpiece to be mounted above the bed | 1200 mm |
| Digital Display Unit (DDU) | established |
| Roughness of the cylindrical surface of the sample product after its finish machining | Ra 2.5 µm |
| Accuracy class of machine tools according to GOST 8-82 | ? |
| Height of the tool to be mounted | SBVVBG mm |
| Machine weight | 16000 kg |
| Main motion drive power | 22 kW |
| Highest cutting force Pz | 41000 |
| Highest torque on the spindle | 9.5 kNm |
| Speed of rapid transverse movements of the slide | 1000 mm/min |
| Speed of rapid longitudinal movements of the caliper | 3000 mm/min |
| Pitch limits of modular threads to be cut | 0.5-30 module |
| Pitch limits of inch threads to be cut | 28-1/4 threads per 1 inch |
| Step limits of metric threads to be cut | 1...120 mm |
| Maximum lateral movement of the slide | 700 mm |
| Maximum longitudinal movement of the slide | 4600 mm |
| Diameter of the cylindrical bore in the spindle | 128 mm |
| Largest diameter of the workpiece to be machined above the bed | 1140 mm |
| Largest diameter of the workpiece to be mounted and machined above the slide | 900 mm |
| Longest workpiece length | 5000 mm |
| Spindle speed limits | 5...500 |
Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
