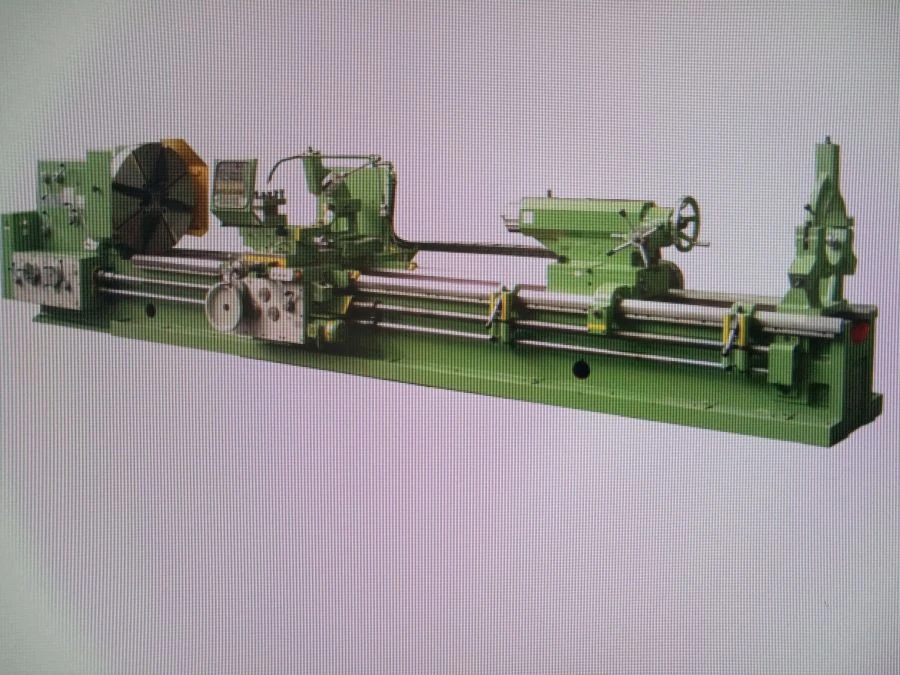

Turning and screw-cutting machine of model 1N65

Manual Metal Lathes

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

The machine lathe - screw-cutting model 1N65 is designed for external turning, boring, drilling, taper machining, thread cutting: metric, modular, inch, pitch, multi-threading. Technical characteristics and rigidity of the machine allow to fully use the capabilities of high-speed and carbide tools in the processing of both ferrous and non-ferrous metals. For machining of conical surfaces and tapered threads the machine can be equipped with a cone ruler on special order. The machine design does not provide for the possibility of equipping with electronic control devices (CNC) on the contour on 2 or more axes.

Technical Specifications

The largest diameter of the workpiece mounted above the bed, not less than	1400 mm
The largest diameter of the workpiece above the bed, not less than	1000 mm
The largest diameter of the workpiece to be machined above the slide, not less than	650 mm
Limit dimensions of the workpiece to be mounted and machined, not less than	1000 mm
Maximum length of the workpiece to be processed, not less than	1000 mm
Maximum mass of the workpiece to be installed	8000 kg
Height of the tool to be mounted	32 mm
Total power of electric motors installed on the machine tool	23,68 kW
Machine dimensions	2200 mm
Machine weight	9850 mm

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
