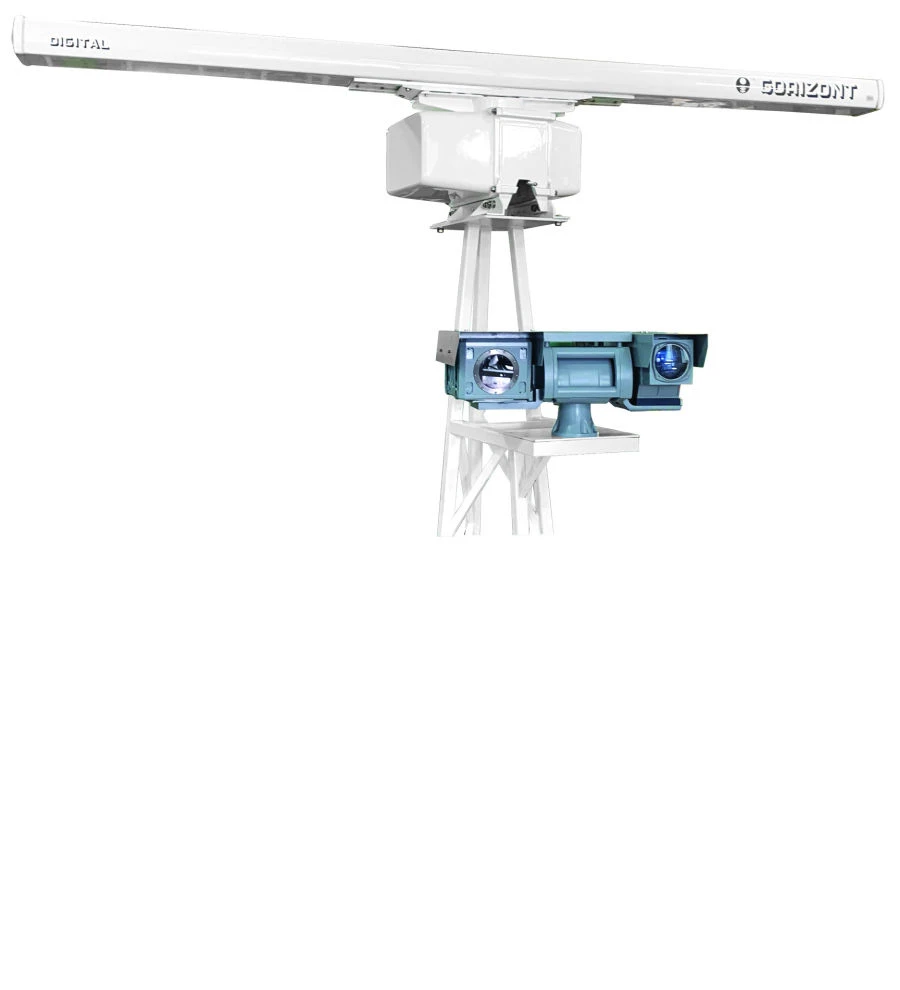

Radiolocation station "Bussol-SM"

Main specifications .Target detection probability - 0,8. Minimum detection range - not more than 25 metres. Maximum detection range:a) large targets - not less than 24 miles;b) medium targets - not less than 15 miles;c) small targets - not less than 12 miles;d) ultra-small targets - not less than 6 miles. The height of installation is from 15 metres to 30 metres. Speed of detected targets - up to 60 knots (111 km/h). Number of escorted targets - not less than 200 ts. Range resolution of the station does not exceed 18 m. The station's directional resolution does not exceed 0.9 . Antenna radiation pattern width: a) in the horizontal plane - (0.6 0.06); b) in the vertical plane - (20 +8, minus 2). Antenna rotation speed of the AP module is (244) rpm. Continuous operation time - 24 hours. Readiness time - not more than 200 s. Power consumption - not more than 1 kW. Average full service life - not less than 10 years.
