Hardware-software complex "TRAFIK-Scanner-K2"

Radar Equipment

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

Description

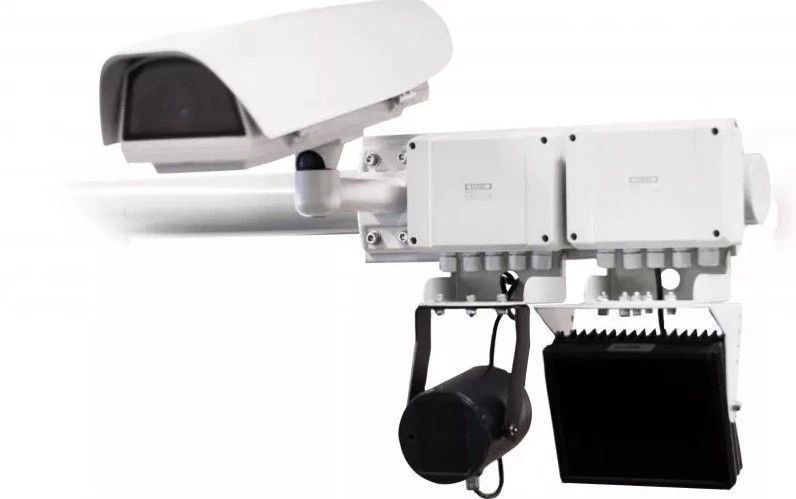

The hardware-software complex "TRAFIK-SCANNER-K2" TU 4278-010-63796276-2018 is designed to control the speed of motor vehicles on urban and motorway roads, video recording of traffic violations, recognition of all state registration plates of vehicles (hereinafter - SRZ of vehicles), moving through the control zone or stopped (parked) in the control zone, processing, temporary storage of the received data from the measuring radar detector, traffic light signalling controller and video data, transmission through standard ports of the prepared information, which is the evidence base of the fact of traffic violation, and other information. It is designed to work in round-the-clock mode. Data protection from unauthorised access is provided. There is a differentiated level of access to the management of the complex and its functions.

Specifications

Probability of recognizing a license plate number 98 %

Operating temperature range From -40 to +50 °C

Relative humidity 98 %

Atmospheric pressure 86;0 to 106;7

Weight of control unit not more than 38 kg

Absolute error of setting time marks in relation to UTC (SU) ±1

Parameters of the monitored section on the UDS not less than: width for GRZ recognition camera 10 / 10 m

Degree of protection of equipment ip56

Max. number of recognition cameras on one line, up to 24

Max. number of radar detectors on one boundary, controlling different directions of vehicle movement, up to 4

Максимальное число обзорных камер 4

Range of vehicle speeds 10-250

Limits of permissible absolute error of speed measurement taking into account errors of positioning above the road ± 2

Recognition of state registration plates of countries 70

Protection of data from unauthorized access Armoured glass

Constant power consumption (of the basic set) at ambient temperature: above +10 ºC, W 350 W

Constant power consumption (of the basic set) at ambient temperature: below +10 º?, W 650 W

Power supply voltage 198...242 V

Average MTBF 43000

Time of establishing the operating mode at short-term power failure 5

Metrological confirmation of accuracy of measurement of coordinates of the complex, current time, speed. Armoured glass

Function of self-diagnostics of the main units operability Armoured glass

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
