R65 Type Switch Translation Model 1/5 Project N01.011.0000.00-02

Available for Import

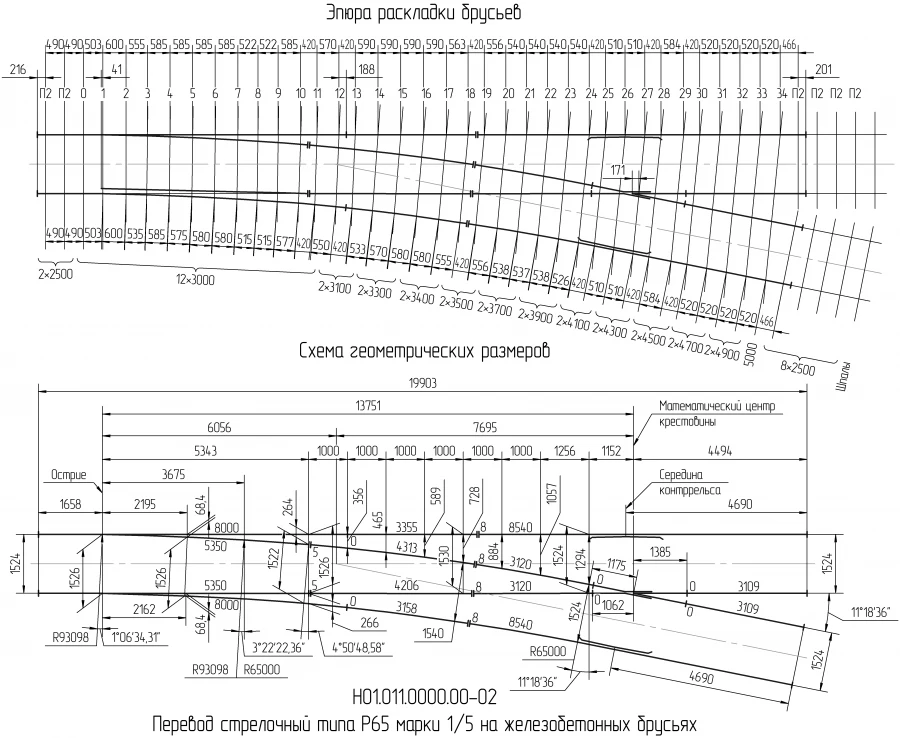

R65 Type Switch Translation for Metro Applications - Model 1/5 Project N01.011.0000.00-02

Wide Gauge Track Switches

Manufacturer:NSZ OJSC

Price:Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Available Models

Switching of arrow type P65 type 1/5 of project H01.011.0000.00-03

Description

Designed for operation on underground tracks. Design features: transfers: separate fastening; terminals of PC type; pads with flanges; switches: rotary shackle; liner-overlay fastening of the root; welded shoes; adjustable traction; crossbars: one-piece cast of high-manganese steel with liner termination of front and rear outreaches; counter rail from SP850 angle

Specifications

Cross type by angle

Spicy

View

Single

Type of single transfer

Ordinary

Arrow design

With rotating sharps

Cross brand

1/5

Rail type

?65

View in the direction of a side or crossing track

Right

Cross type by construction

Solid

Type of product according to PP RF 616

Track equipment and devices and their parts

Type of timber

Reinforced concrete
