Available for Import

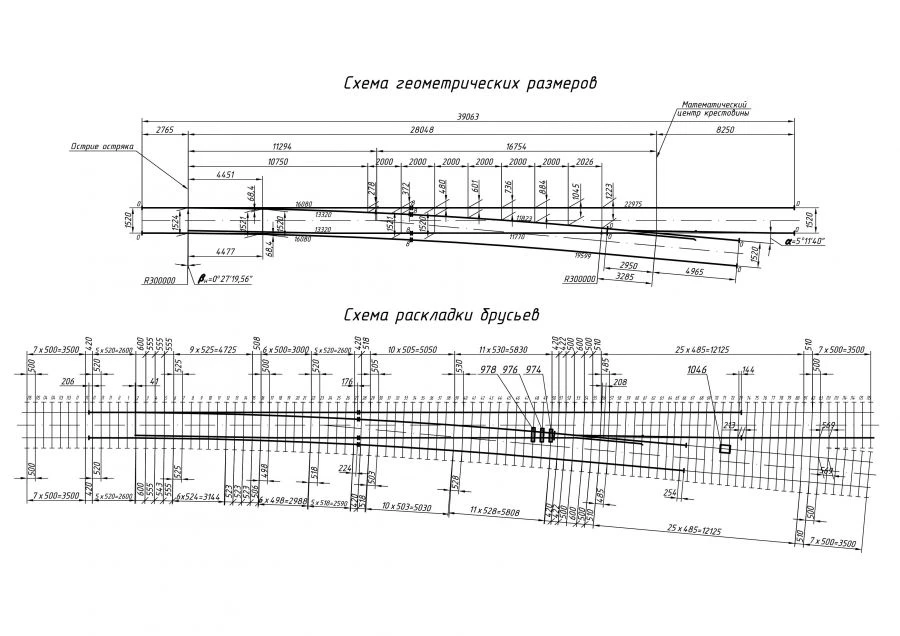

R65 Type 1/11 Switch for Railways - Project 2726.00.000/-01 for Class 1 and 2 Tracks
Manufacturer:
MSZ OJSC
Price:
Request Quote
Bulk pricing available
FOB, CIF & EXW terms available
Description
The track crossing of type R65 mark 1/11 on reinforced concrete bars is designed for laying on railway tracks of 1 and 2 classes. Flexible shackles with welded rails are used in the switch. Crossing with a continuous rolling surface with a flexible-turn core. All pads with high flanges. Shackles, core rails and whiskers are HFI hardened. Frame rails, curve rails made of OT 350 rails.
Specifications
Cross type by angle
Spicy
View
Single
Type of single transfer
Ordinary
Arrow design
With flexible sharps
Cross brand
1/11
Rail type
?65
View in the direction of a side or crossing track
Left, right
Cross type by construction
Team
Type of product according to PP RF 616
Broad gauge switches
Type of timber
Reinforced concrete
Share your requirements for a quick response!
Instant response in 15 minutes
Best wholesale prices guaranteed
Direct from manufacturer
Delivery & Payment
Shipping Terms
Delivery Time
Sea freight: 30-60 days (depending on destination)
Air freight: 14-21 days (for urgent orders)
Payment Methods
