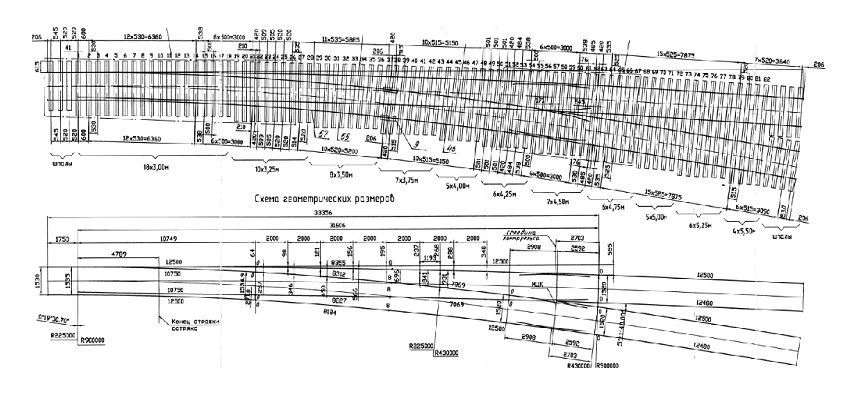

R65 Type 1/11 Switch for Railways - Project 2851.00.000/-01 Available for Import

R65 Type 1/11 Railway Switch for Smooth Track Transitions

Wide Gauge Track Switches
Manufacturer: MSZ OJSC
Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Description

The track crossing of type R65 grade 1/11 on reinforced concrete bars is used for transfer of rolling stock from one track to another. The transfer is used on curvilinear sections of railway lines. Flexible shackles are used in the switch.

The crossbar is of prefabricated-welded construction - the cast core is welded to the rails of the crossbar rear outreach and connected to the rail whiskers. The counter rail is not connected to the track rail. The shackles are HFI hardened.

Frame rails, crossover rails, rails of the transfer curve made of rails of OT 350 category. The R65 type R65 grade 1/11 type railway crossing of project 2851.00.000/-01 is manufactured in the following versions: 2851.00.000 - right-handed; 2851.00.000-01 - left.

Specifications

View
Single
Cross type by angle
Spicy
Type of product according to PP RF 616
Track equipment and devices and their parts
Type of single transfer
Curved one-sided
Arrow design
With flexible sharps
Cross brand
1/11
Rail type
?65
Cross type by construction
Team
View in the direction of a side or crossing track
Left, right
Type of timber
wooden
Type
?65

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
