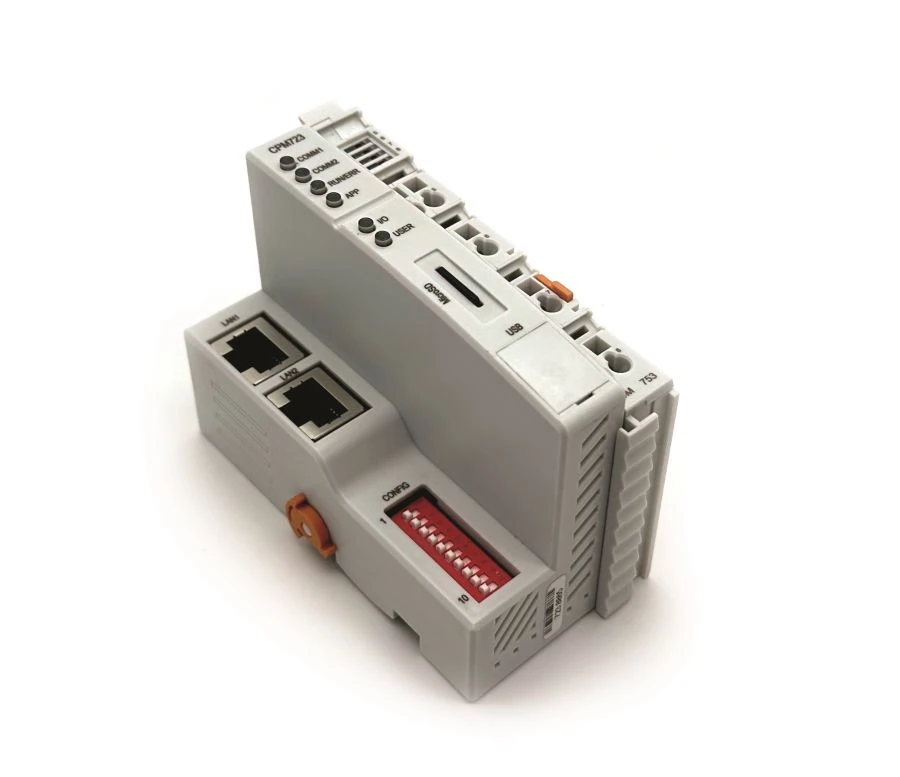

Programmable controller CPM723-01-C1 (IMES.421459.089-01)

Advanced Computing Devices

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

The CPM723 programmable controller is designed for use in programmable logic controllers with variable FASTWEL I/O modules as a CPU module. It contains an integrated IEC 61131-3 IDE application execution system adapted for Fastwel controllers. The two Ethernet ports in the controller can operate in two modes: switched (Switch and Ring submodes) and non-switched (One Subnet and DSA submodes). Protocols OPC UA (server), Modbus TCP (client and server), FTP, HTTP, NTP (client and server), IEEE 1588 and GOST R IEC 60870-5-104 (master and slave nodes) are supported through the ports.

Technical Specifications

Network interface	10/100BASE-T Ethernet (2 ports)
Data transmission medium	Twisted pair UTP 100 category 5
Network segment cable length, m, max.	100
Data transmission rate, mbps	10 ? 100
Transmission protocols	Modbus TCP (client/server), GOST R IEC 60870-5-104
Modbus TCP server service: number of independent instances	2
Modbus TCP server service: number of simultaneous client connections	32
Number of independent Modbus RTU master/slave service instances	16/16
Supported Modbus request types in server and client modes	01, 02, 03, 04, 05, 06, 0Fh, 10h, 17h
Available NAND Flash disc drive space, Mbytes, not less	528
Number of peripheral modules on the local FBUS bus, max.	64
Number of peripheral modules on remote FBUS, max.	128
Disc drive space available, Mbytes, not less	240
MicroSD card slot	Yes (1GB card installed)
Supported microSD card capacity, GB, max.	32
Ability to insert/remove microSD card without switching off the power supply	Armoured glass
Supply voltage, V, DC	16...30
Consumption current at 24 V DC voltage, mA, not more	80
Load current of the built-in power supply of FBUS devices, A, not exceeding	1,7
Non-volatile memory, bytes	131056
Real Time Clock	Built-in, standard for x86 systems
Average time between failures, hrs	500000
Weight, g, not more	250

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
