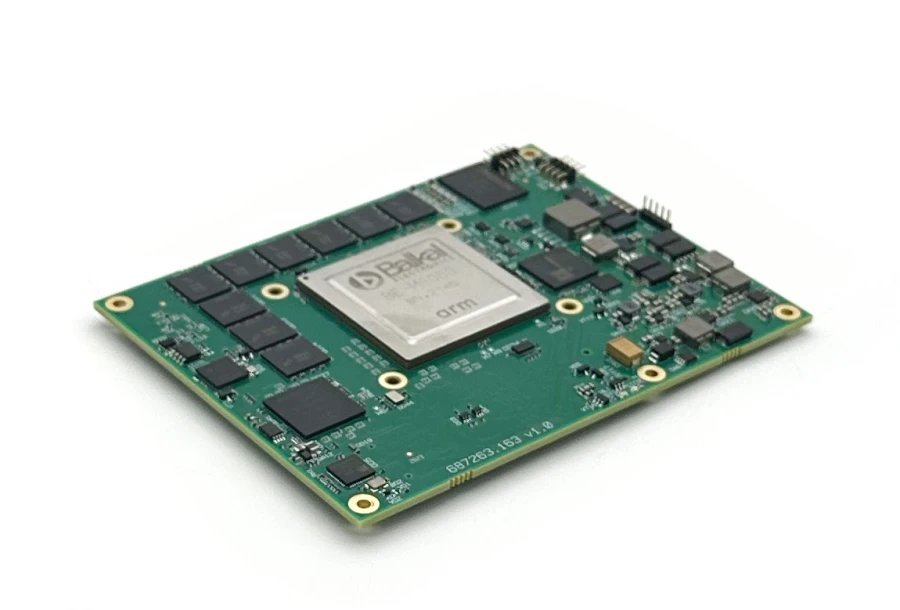

Processor module CPC1309

Manufacturer:
Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Key Highlights

  • Made in Russia - engineered for durability
  • Suitable for challenging environments
  • Lower cost of ownership than European alternatives
  • Bulk orders available with volume discounts
  • Documentation and customs clearance assistance provided
The processor module CPC1309, made in COM Express Basic standard, is a platform based on the processor with integrated graphics core of domestic development, which allows to get a modern set of functionalities based on PCI Express 3.0, SATA 3.0, USB 3.1, DisplayPort 1.2a.

Technical Specifications

Processor Baikal-M (1.5 GHz)
RAM один канал до 16 ГБ 64-бит DDR4-2400 МГц с поддержкой корректирующих кодов (ECC); 16 Гбайт (для CPC1309-01); 8 Гбайт (для CPC1309-02)
Video outputs Display Port Interface (resolution up to 2560 × 1440@60Hz, 24-bit colour depth); LVDS Interface (resolution up to 2560 × 1440@60Hz, 24-bit colour depth)
PCI Express bus One PCIe Gen3 x8 interface; One PCIe Gen3 x4 interface; Four PCIe Gen2 x1 interfaces.
SATA interface Two SATA III ports
eMMC/SD interface Soldered eMMC drive with 5.1 protocol support
Ethernet interface One 10/100/1000 Mbit port
USB interface Two USB3.0 ports; 4/6 USB2.0 ports
Loading FLASH 2x128Mbit SPI-Flash
Non-volatile memory 32 Kbytes for user data storage, implemented on a separate I2C bus
Real Time Clock External RTC chip with lithium battery power supply located on the carrier board
Hardware monitor Power on/off sequence control; Power supply voltage monitoring; CPU, PCB temperature monitoring; Fan control.
Indication On the board there are LED of the module operation mode and LED of the storages activity.
Operating temperature range Minus 40 ºC to plus 85 ºC
Power supply voltage +12 ? ± 5%
Consumption current 3,5 ?
Software compatibility with OS Linux Debian

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
