Platform "4E8-2U" TVGI.469549.009

Advanced Computing Devices

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

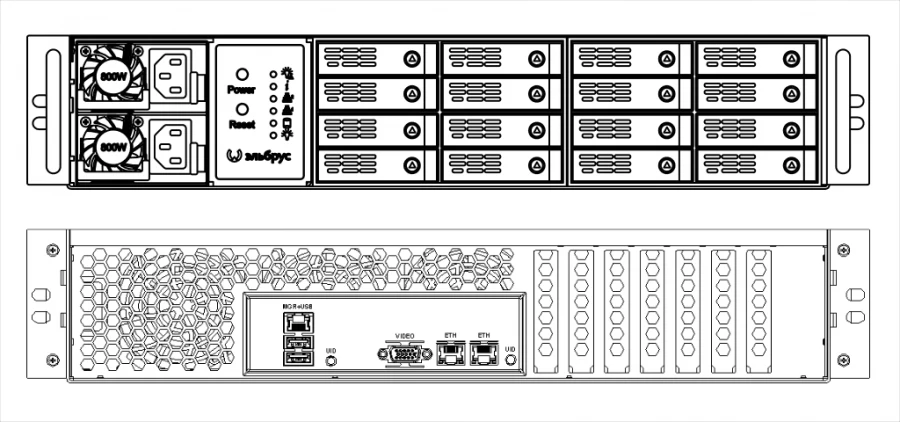

Server platform based on 4 Elbrus-8SV processors allows you to create high-performance computing nodes in a 2U chassis for installation in a standard 19? rack.

Typical applications:
- Database server;
- a high-load web server or application server;
- node in a cluster system

Technical Specifications

Chipset	4 central processors Elbrus-8SV; 2 peripheral controllers KPI-2
RAM	16 DDR4-2400 ECC slots (288-pin DIMM), up to 256GB (only DDR4 ECC Registered modules supported)
Long-term memory	16 hot-swappable 2.5? SAS/SATA bays on the front (drive cage has backplate with SATA connectors); 2 2 2.5? slots inside the chassis; 15 SATA 3.0 ports on motherboard; 1 M.2 SATA slot (Type M, size 2280-D5) for SSDs (supported only on the
Video system	Integrated 2D graphics as part of the control controller
Audio system	integrated HD Audio controller with digital input-output; PC Speaker can be connected
External interfaces	4 Ethernet 1000Base-T ports with RJ45 connectors; 4 USB 2.0 peripheral ports with type A connectors; 1 VGA video port with DE-15 connector; 2 USB 2.0 peripheral ports on 1 10-pin comb; 1 RS-232 console port on 10-pin comb.
Internal interfaces	1 SPI bus port on 8-pin comb for ROM updates; 1 I2C bus port on 10-pin comb for FRUID writes; 1 JTAG debug port (CPU, KPI) on 10-pin comb
Expansion slots	7 PCI Express 2.0 x16 slots (4×8 + 1×4 + 2×1)
Dimensions	19?/2U case, microATX motherboard dimensions 482.6×88.0×740.0 mm, weight 23 kg
Power system	Power supply from AC mains 220 V ± 10 %, 50 Hz ± 2 %; 2 power modules with capacity 800 W, consumption up to 800 W
Cooling system	3 80×38 mm fans in the middle of the main compartment; 2 40×28 mm fans in each power supply unit
Architecture	Elbrus

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
