Available for Import

Module E8S-tsATH/SE LYAUI.469555.096

Advanced Computing Devices

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

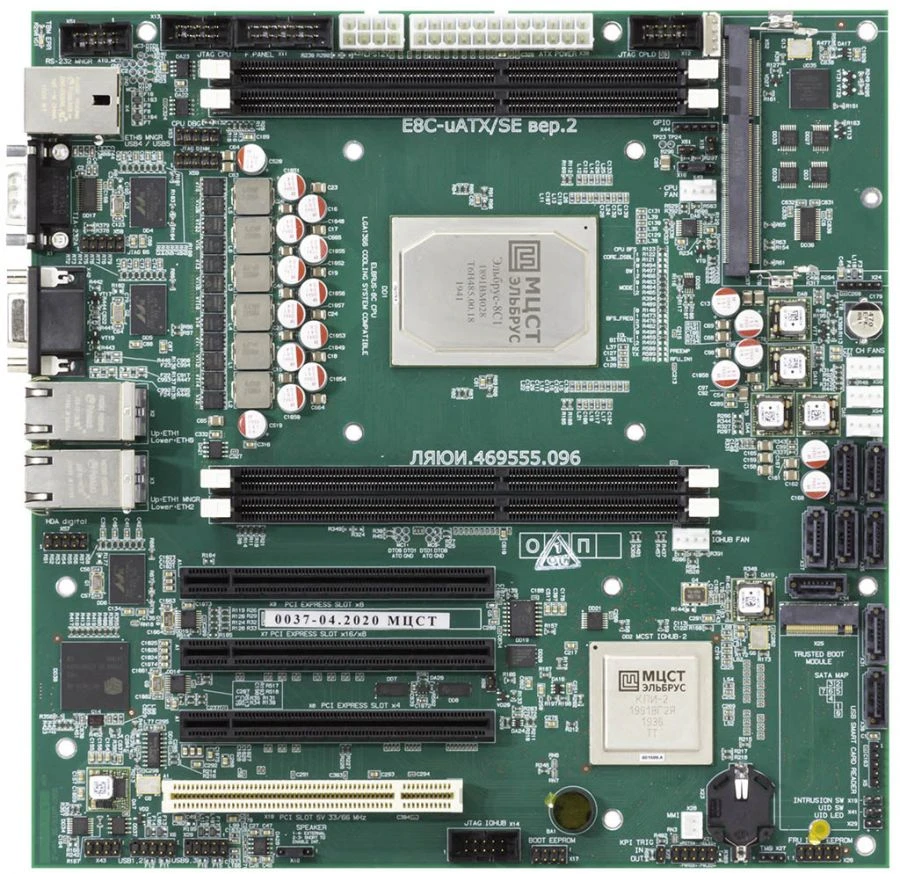

The E8C-uATX-SE compute module is a 1-processor microATX format motherboard - system panel designed for operation as part of server computing equipment. It has the following typical applications:

application server for small projects;
infrastructure server (files, mail, domain, etc.)..

Technical Specifications

Processor	Elbrus-8C
Architecture	Elbrus
RAM	4 DDR3-1600 ECC (DIMM 240-pin) slots, up to 64 Gbytes
Long-term memory	8 SATA 3.0 ports for HDD and SSD drives
Video system	1 Silicon Motion SM718 embedded controller
Audio system	1 built-in PC Speaker
External interfaces	3 Ethernet 1000Base-T network ports with RJ45 connectors 2 Ethernet 100Base-TX network ports with RJ45 connectors from ICC 2 USB 2.0 peripheral ports with type A connectors 1 RS-232 console port with DE-9 connector from server 1 video port with VGA connect
Internal interfaces	2 USB 2.0 pads with 10-pin connectors for 4 front ports 1 GPIO pad with 5-pin connector for direct I/O 2 SPI pads with 8-pin connectors for ROM updates 4 JTAG pads with 10-pin connectors for CPU diagnostics, KPI, ... 1 FP pad with 16-pin connector
Internal ICC interfaces	1 SO-DIMM slot for Server Management Module (SMM) ? supported only "SMM-A" (LYAUI.469535.149)
Expansion slots	3 x16 PCI Express 2.0 slots (2×8 + 1×4 or 1×16 + 1×4) 1 PCI 2.3 slot 32 bit 5 volt, 33/66 MHz frequency
Form factor	microATX

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.

Shipping & Payment Information

Shipping Terms

FOB: Novorossiysk, Russia
CIF: Available to major ports worldwide
EXW: Manufacturer's facility, Russia

Delivery Time

Sea freight: 30-60 days (depending on destination)
Air freight: 14-21 days (for urgent orders)
Production lead time: 30-90 days (depending on order size)

Payment Methods

Letter of Credit (L/C)
Wire Transfer (T/T)
Escrow Services

Order Minimums

We work with orders starting from 1 container
You can mix different products in one container
Volume discounts available for larger orders

Customs & Documentation Support

We provide comprehensive assistance with all export documentation, customs clearance, and logistics arrangements. Our team has extensive experience facilitating international trade with businesses in Africa, Middle East, Asia, and Latin America.
