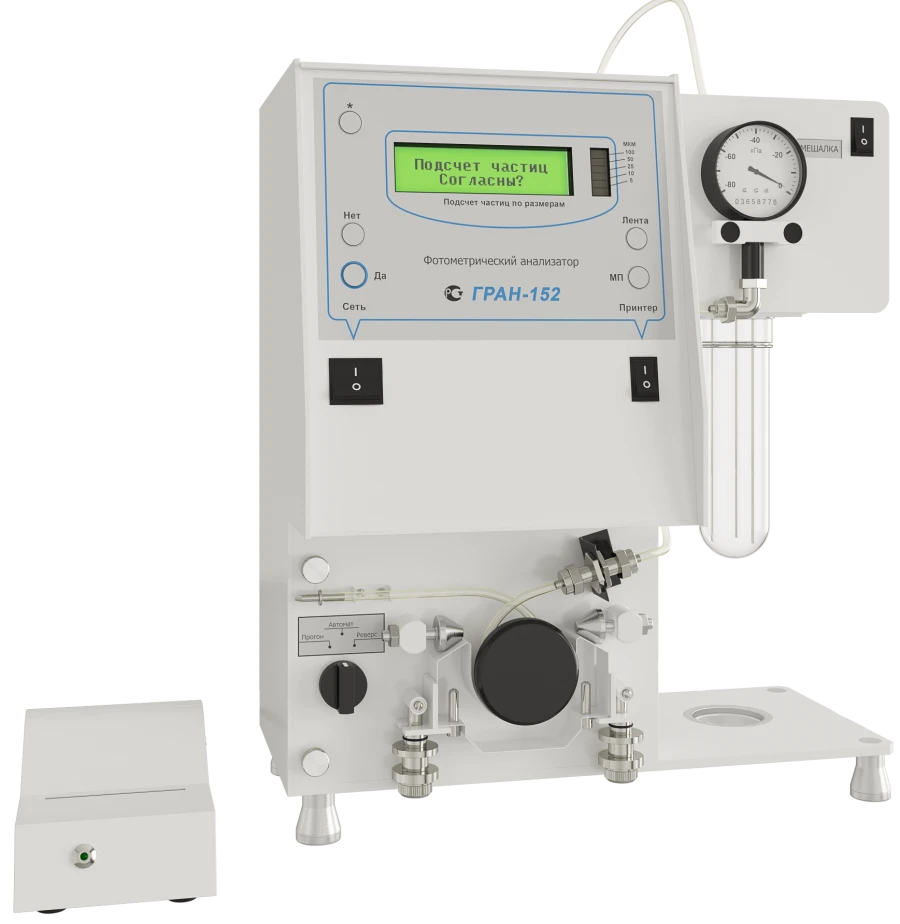

Photometric counting analyser of mechanical impurities "GRAN-152".

Analyser photometric counting mechanical impurities GRAN-152 (hereinafter referred to as the analyser) is designed to measure the number of suspended particles of various sizes in liquids, their classification by size groups and determine the purity class of the liquid in accordance with the standards of GOST 17216-2001 "Industrial purity. Purity classes of liquids".
The analyser can operate in two modes:
? Mode 1 - counting of particles taken from the sampler container;
Mode 2 - continuous cyclic counting of particles taken directly from the flow of the controlled liquid.
The analyser is equipped with a set of samplers to ensure representative sampling.

The analyser can be used to determine:
? In mode 1:
- particle size distribution of particles suspended in liquids,
- purity classes of liquids according to GOST 17216-2001,
- disperse composition of various emulsions and suspended powders.
? In mode 2:
- efficiency of the filters,
- the moment of reaching t...
