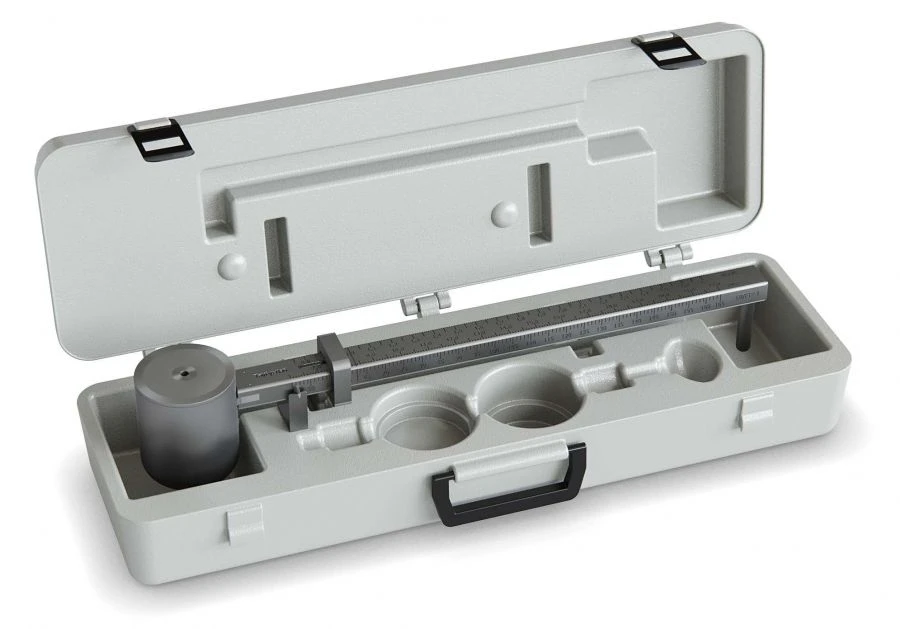

Lever scales TRL14

The TRL14 Drilling Mud Density Lever Scale is used to accurately determine the density or
weight of drilling or cement slurry at any temperature. The TRL14 lever scales are designed so that the mud bowl on one side of the scale is used to accurately determine the density or weight of drilling or cement mud at any temperature.
for drilling mud at one end of the lever is balanced by a counterweight fixed at the other end and a movable weight moving freely on the graduated scale of the square-sectioned lever. To bring the scale into balance, a bubble level is mounted above the fulcrum. On the face of the lever scale are measuring scales with ranges in lb/gal and g/cm³, and on the other side lb/?³ and psi/1000 ? depth. The square-section lever scale provides a simple, practical way to accurately determine mud density.
