Available for Import

Panels E8C-SWTX LYAUI.469555.093

Advanced Computing Devices

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

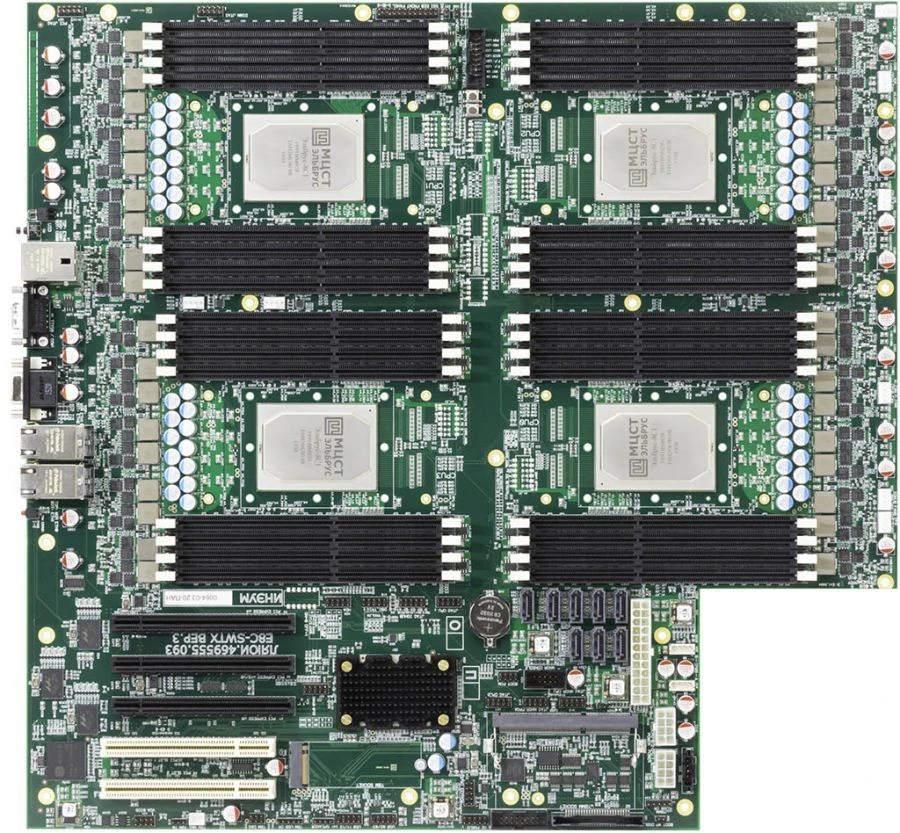

The E8C-SWTX compute module is a 4-processor SWTX format motherboard (SSI MEB), a system board designed for use in server computing applications. The combination of 32 processor cores and 32 RAM slots dictates the following typical applications:.

database server;
application server for high-load projects;
high-density computing cluster node.

Technical Specifications

Processor	Elbrus-8C
Architecture	Elbrus
Number of processors	4 pc
RAM	32 slots DDR3-1600 ECC (240-pin DIMM), up to 256GB
Long-term memory	8 SATA 3.0 ports for HDD and SSD drives
Video system	1 Silicon Motion SM718 embedded controller
Audio system	missing, PC Speaker can be connected
External interfaces	3 Ethernet 1000Base-T network ports with RJ45 connectors 2 Ethernet 100Base-TX network ports with RJ45 connector for ICC 2 USB 2.0 peripheral ports with A-type connectors 1 RS-232 console port from server with DE-9 connector 1 video port with VGA connector
Internal interfaces	2 USB 2.0 pads with 10-pin connectors for 4 front ports 1 INT_SW pad with 2-pin connector for tamper switch 1 GPIO pad with 10-pin connector (7 lines) 1 PC Speaker pad with 4-pin connector for audio output 2 SPI pads with 8-pin connectors for upgrades
Internal ICC interfaces	1 SO-DIMM slot for Server Management Module (SMM) ? supported only "SMM-A" (LYAUI.469535.149)
Expansion slots	3 x16 PCI Express 2.0 slots (2×8 + 1×4 or 1×16 + 1×4) 2 PCI 2.3 slots 32 bit 5 volt, 33/66 MHz frequency
Form factor	SWTX

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
