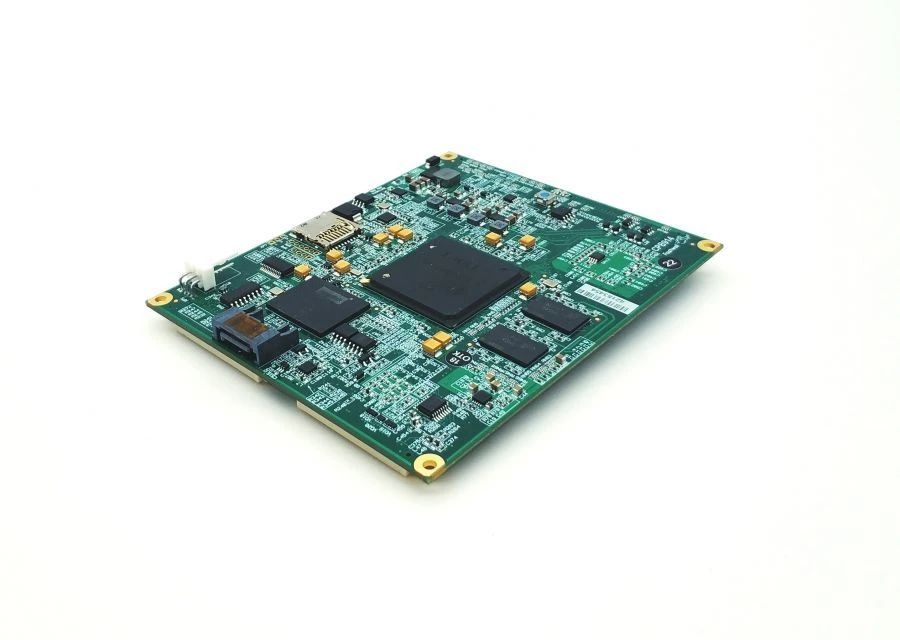

Processor module CPB914

Manufacturer:
Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Key Highlights

  • Made in Russia - engineered for durability
  • Suitable for challenging environments
  • Lower cost of ownership than European alternatives
  • Bulk orders available with volume discounts
  • Documentation and customs clearance assistance provided
The CPB914 module in the standard ETX format provides designers of highly reliable small-sized systems with features such as: compatibility with the x86 family, a modern set of functionalities, low power consumption, small size and low cost. The ETX form factor is characterised by its small overall dimensions (114 x 95 mm). The CPB914 module can be used as a computing core (with a large set of I/O interfaces) in the construction of real-time systems, on-board systems, security and communications, production control, high-speed data acquisition and for other demanding applications designed to work in harsh environments. Expansion of the module functionality is carried out by connecting to the carrier board.

Technical Specifications

Processor Vortex86DX3
RAM Soldered DDR3-800 SDRAM 2 Gbytes; bus frequency 400 MHz
Встроенный графический сопроцессор 2D accelerator; volume of video memory allocated from the main memory up to 64 Mbytes.
Built-in HDA-compatible audio controller Armoured glass
Built-in non-volatile memory 8 Kbytes of FRAM for configuration storage; CMOS settings are stored in FRAM (SPI) when the battery is not present.
FLASH BIOS 2 MB with system modification option
MicroSD card slot Support SD, SDHC, speed class 6 cards; up to 32GB capacity.
FLASH disk 8GB soldered drive, drive controller connected to SATA interface; memory type used is NAND Flash (SLC).
I/O Port X1 32-bit PCI bus, 33 MHz; up to 4 USB 1.1/2.0 devices, USB boot support; stereo line input/output, microphone input (mono)
I/O Port X2 16 bit 8/16 MHz ISA bus
I/O Port X3 RGB monitor connection port with resolution up to 1920x1440, 60 Hz; LVDS panel connection port with resolution up to 1024x768; serial ports COM1 / COM2 (full set of signals), compatible with 16C550 / 16C552 model, exchange rate up to 3 Mbaud; port to
I/O port X4 HDD connection port, 1 channel Primary, connection of up to two devices, Ultra-DMA 100 support; LAN port 10/100 Mbit; I2C port, 100 / 400 Kbit; SMB port; "Speaker Out" port for buzzer connection; "RTC battery" port for battery connection
Real Time Clock Yes, battery power provided by carrier board
Console ports COM1 / COM2 / COM3
Digital temperature sensor Measurement of temperature from minus 55 to plus 125 °C; resolution 12 bits + sign; unit price of the lowest digit 0.0625 °C; conversion time up to 1000 msec
Watchdog timer Programmable response interval from 100 µsec to 3 min
Software compatibility with OS Microsoft™ MS-DOS®6.22, FreeDOS; Linux Debian 8; QNX 6.x; Microsoft™ Windows 7 Embedded; Windows Embedded Standard 2009
Operating temperature range minus 40 °C to plus 70 °C

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
