Panelboard digital electrical measuring instrument: version Shch22.6

Electrical Measuring Devices

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

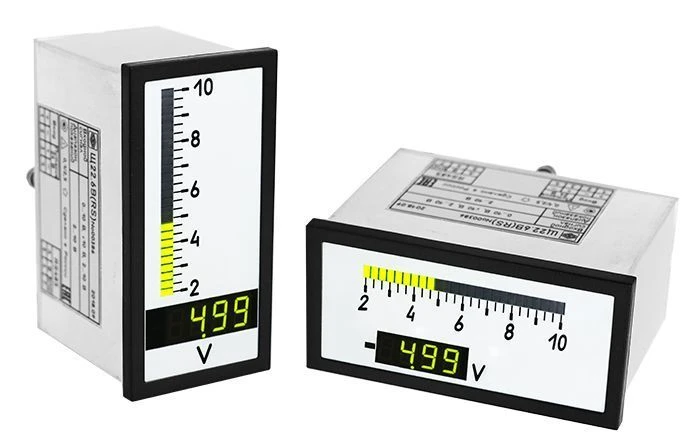

The panel-mounted digital electrical measuring device Shch22.6 is designed to measure current or voltage in DC circuits for operation as part of the technical means of nuclear power plants, as well as in other industries. The device can be used in a set with primary converters for measurement of non-electrical quantities, if the ranges of the output electrical signal of primary converters correspond to the ranges of the input signal of the devices. The device provides the following features: selection of input signal measuring range, change of reading range and unit name; programming of indication colour change thresholds of discrete-analogue digital signal conditioning unit, data transfer to computing devices via RS485 interface (Modbus RTU, original protocol). The device is made in a metal case of panel mounting. Safety class of the devices: 2, 3, 4 according to NP-001-2015.

Technical Specifications

Overall dimensions, mm	100×50×83 (?22.6.D), 50×100×83 (?22.6.C)
Input signal measurement ranges	0...75 mV (-75...0...75 mV), 0...200 mV (-200...0...200 mV), 0...1 V (-1...0...0...1 V), 0...10 V (-10...0...10 V), 2...10 V, 0...5 mA (-5...0...0...5 mA), 0...20 mA (-20...0...20 mA), 4...20 mA (-12...4...20 mA).
LED indication	Digital and discrete-analogue DUT (counting device); number of indicators of digital DUT: 4 and sign "-"; number of unit indicators of discrete-analogue DT, type of indicator: 25, bar (risk); type of discrete-analogue DT: line; height of digits ts
Maximum reading range of the digital DUT	From -9999 to 9999
Basic error	By digital. DUT - ±0.1%; by discr.analogue DUT - ±2.5%. DUT - ±2.5%
Galvanic isolation of input circuits, interface circuits and power supply circuits	Got it
RS485 communication interface	Quantity: 1; Modbus RTU protocol, original protocol
Power supply voltage	(24 ± 4) VDC
Power consumption from the power supply circuit, not more	2.9 V-A
Reprogramming	Via "Configurator" program (RS485 interface)
Operating temperature range	From -10 to +50 °C (relative humidity 98 % at +35 °C)
Degree of protection	IP20
Mounting	In the shield
Inspection interval	6 years old
Warranty period of operation	24 mos.
Average service life, at least	15 years
Average MTBF	150000 ?
