Instrument for measuring alternating current, voltage and frequency ShchP02.01P

Electrical Measuring Devices

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

Available Models

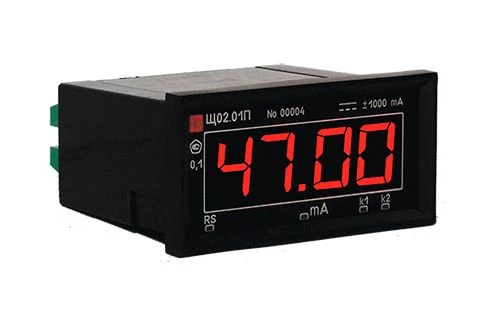

Instrument for measuring DC current and voltage small-sized Shch02.01P

Description

Digital small-sized devices ShchP02.01P are designed to measure and convert the effective value of current, voltage and frequency in single-phase electrical networks and other AC circuits into output unified DC signals and transfer the measured values via serial digital interface RS485.
Single-phase devices can be used in three-phase electrical networks for measurement and conversion of parameters of one phase. Advantages: unique overall dimensions 96×48×95 mm, accuracy class 0, 2 or 0, 5, size of indicators 20 mm, extended operating temperature range from -40 °? to +50 °?. ShchP02.01P is included in the State Register of measuring instruments of the Russian Federation No. 64095-16. Interverification interval - 10 years.

Specifications

Weight, kg, not more 0,3

LED indication 1 block of seven-segment indicators (4 indicators per block)

Input signal 100 mV; 150 mV; 200 mV; 250 mV; 500 mV; 1000 mV; 2000 mV; 1 V; 2 V; 5 V; 10 V; 20 V; 50 V; 100 V; 150 V; 200 V; 250 V; 380 V; 500 V; 750 V; 2 mA; 5 mA; 10 mA; 20 mA; 50 mA; 100 mA; 200 mA; 500 mA; 1000 mA; 2000 mA; 1 A; 2 A. Connection via trans

Frequency range of measured / converted signals 45 to 65 Hz (default), 300 to 500 Hz (optional, when ordering)

Maximum reading range 0 to 9999

Measurement time 0,1 ?

Basic error Current and voltage: ±0,2 %, ±0,5 %; frequency: ±0,01 Hz, ±0,1 Hz; analogue output: ±0,5 %

Galvanic isolation of output circuits, power supply circuits Got it

RS485 communication interface Quantity: 1; Modbus RTU protocol

Analog outputs Quantity: 0, 1, 2; Ranges: 0...5 mA, 4...20 mA, 0...20 mA, 0...2.5...5 mA, 4...12...20 mA, 0...10...20 mA

Discrete outputs Quantity: 0, 1, 2; DC voltage 300 V, 100 mA or AC voltage 200 V, 100 mA

Power supply voltage 5VN - (5 +4/-0,5) VDC, 12VN - (12 +6/-3) VDC (there is protection against incorrect connection of the polarity of the supply voltage), 24VN - (24 +12/-6) VDC (there is protection against incorrect connection of the polarity of the supply voltage), 24VN - (

Power consumption from the power supply circuit, not more 3.2 B-A

Reprogramming Via "Configurator" program (RS485 interface)

Operating temperature range From -40 to +50 °C (relative humidity 95% at +35 °C)

Degree of protection IP50

Mounting In the shield

Performances General industrial; for operation at NPPs (safety class 4 according to NP-001-2015)

Inspection interval 10 years

Warranty period of operation 36 mos.

Average service life, at least 20 years

Average MTBF 200000 ?

Height of indicator sign, mm 20

Overall dimensions, mm 96×48×95

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
