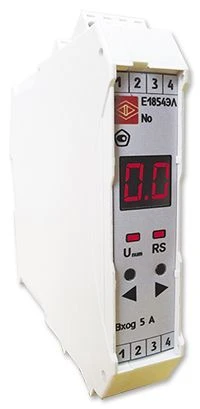

AC current and voltage measuring converter E1854EL

Electrical Measuring Devices

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

Description

Converters E1854EL are designed to measure current and voltage in AC single-phase circuits. Converters can be used for control of currents and voltages of electrical systems, installations and automation of various objects of power engineering and industry. The converters provide the following features: software selection of current or voltage input signal, measuring range; software selection of analogue output signal range; formation of discrete output signal when the set threshold value is reached; display of input signal on the indicator as a percentage of the nominal value; data transmission via RS485 interface (Modbus RTU protocol). E1854EL are included in the State Register of measuring instruments of the Russian Federation No. 59809-15. Interverification interval - 8 years.

Specifications

Overall dimensions, mm 23x111x115

Weight, kg, not more 0,3

LED indication Two-digit seven-segment indicator to display the percentage scale of the input signal; two single LEDs to indicate interface operation and power supply voltage

Input signal 0...0,5 A; 0...1 A; 0...2,5 A; 0...5 A; 0...125 V, 0...250 V, 0...500 V, 75...125 V, 150...250 V (reprogramming of input signal type (current or voltage), input signal range to any of these ranges)

Measurement time 0.1 to 1 sec.

Basic error ± 0,5 %

Galvanic isolation of input and output circuits, power supply circuits Got it

RS485 communication interface Quantity: 0, 1; Modbus RTU protocol

Analog output Quantity: 0, 1; programmable ranges: 0...5 mA; 0...20 mA; 4...20 mA

Discrete output Quantity: 0, 1; DC voltage: 300 V; 100 mA; AC voltage: 200 V; 100 mA

Power supply voltage 12VH - (12+6/-3) Vdc; 24VH - (24+12/-6) Vdc; 230V - 85 to 253 V ac 50 Hz; 220VU - 85 to 253 V ac 50 Hz or 120 to 265 V dc.

Consumption power, not more 0.5 W from the input signal circuit (for parallel circuit); 0.01 W from the input signal circuit (for series circuit); 6 V-A from the power supply circuit

Reprogramming Via "Configurator" program (RS485 interface); via front panel buttons

Operating temperature range From -40 to +50 °C (relative humidity 95% at +35 °C)

Degree of protection IR50

Mounting DIN rail 35 mm

Inspection interval 8 years

Warranty period of operation 2 years

Average service life, at least 20 years

Average MTBF 200000 ?

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
