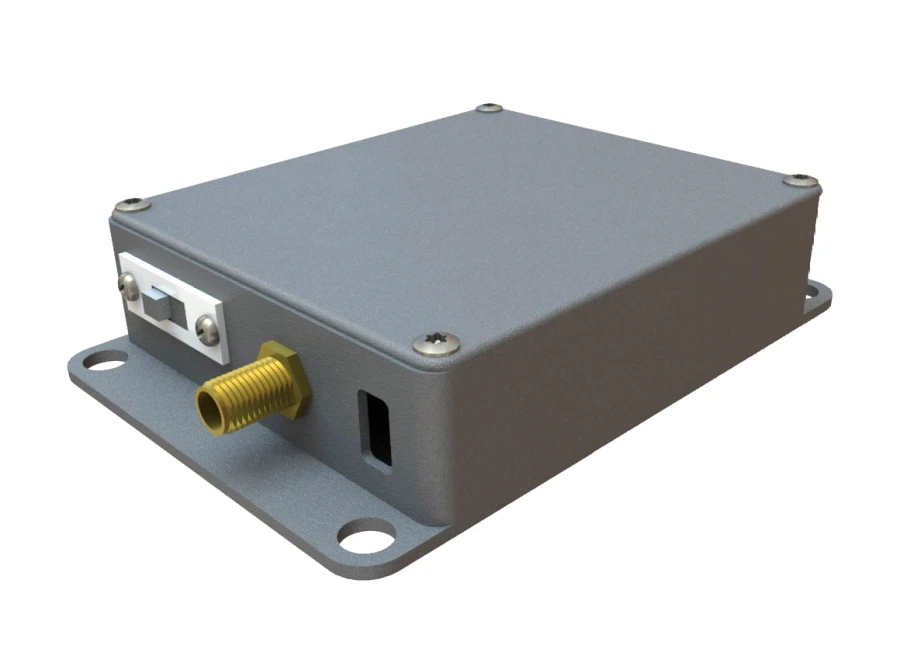

Onboard inertial navigation system (BINS)

Advanced Navigation Devices

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

Description

Board Inertial Navigation System (BINS) is designed to correct the location coordinates of unmanned vehicles for the purposes of duplication of satellite navigation systems (GNSS) and to refine the coordinates by determining the linear acceleration and angular velocity when comparing them with the route coordinates.The field of application - equipment of land-based wheeled and tracked vehicles, in order to ensure continuous issuance of navigation solutions to the on-board computer or autopilot of the vehicle in the absence or instability of the vehicle.

Specifications

Supported navigation signals GLONASS

Static heading accuracy 2

Dynamic heading accuracy 2

Course resolution, max. 0.05

Steering angle measurement range, plus or minus 180

Angular velocity on course, not more than 2000/sec

Departure of zero signal on course <10/hour

Linear acceleration along the longitudinal axis - 16 to +16 g

Horizontal speed measurement error 0,05 m/s

Frequency of data output Up to 400 Hz

Horizontal accuracy of coordinates determination without GNSS signals (including when vehicles are travelling in closed tunnels) 2.5 m

Interfaces Mini-USB

Power supply voltage 10...24 V

Power consumption 0.5 W

Overall dimensions 92 mm

Weight, not more 75 g

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
