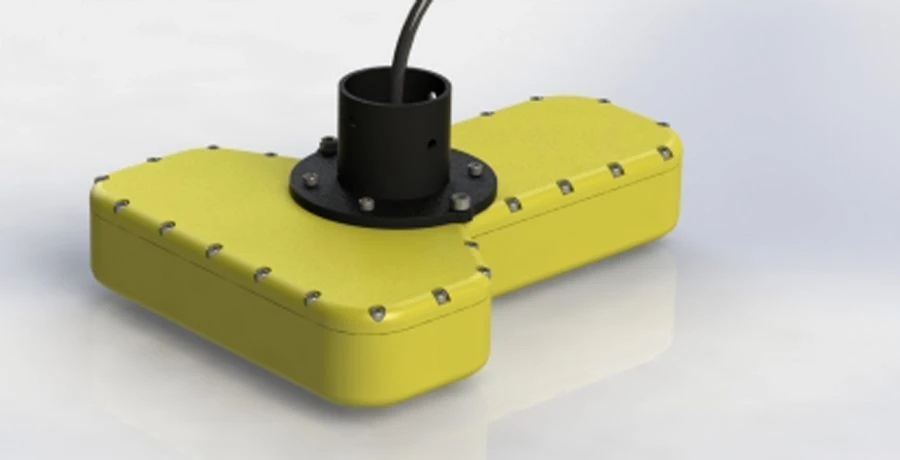

Multibeam echosounder "MLE-300" with SSS function for acoustic imaging of objects
Manufacturer:
Price:
Request Quote
Bulk pricing available
FOB, CIF & EXW terms available
Key Highlights
- Made in Russia - engineered for durability
- Suitable for challenging environments
- Lower cost of ownership than European alternatives
- Bulk orders available with volume discounts
- Documentation and customs clearance assistance provided
Description
Multibeam echosounder "MLE-300" with the function of side-scan sonar is designed for profiling the bottom relief and searching for objects on the bottom and in the water column.
FEATURES:
- Wide swath of the bottom.
- Possibility to monitor objects in the same water column
- Real-time image playback
- Processing and graphical display are performed on a secure PC/laptop.
- According to the main characteristics it is an economical analogue of Teledyne Reson SeaBat T20 (USA).
"MLE-300" with the function of SSS of AKIN JSC allows not only to accurately measure depths, but also has the ability to survey underwater objects (pipelines, mining complexes, sunken objects, etc.)
FEATURES:
- Wide swath of the bottom.
- Possibility to monitor objects in the same water column
- Real-time image playback
- Processing and graphical display are performed on a secure PC/laptop.
- According to the main characteristics it is an economical analogue of Teledyne Reson SeaBat T20 (USA).
"MLE-300" with the function of SSS of AKIN JSC allows not only to accurately measure depths, but also has the ability to survey underwater objects (pipelines, mining complexes, sunken objects, etc.)
Specifications
Width of field of view
140
Operating frequency
300
Inclined operating range
300 m
Beam width in MLE mode
1
Beam width in HBO mode
5
Distance resolution
3 cm
Interface
Gigabit Ethernet
Power consumption
30 W
Working depth
300 m
Dimensions
300 x 400 x 60 mm
Power supply voltage
24...75 V
Weight in air, not more than, kgf
10
Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
