4G+GNSS module (BUNSM 2.0)

Advanced Navigation Devices

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

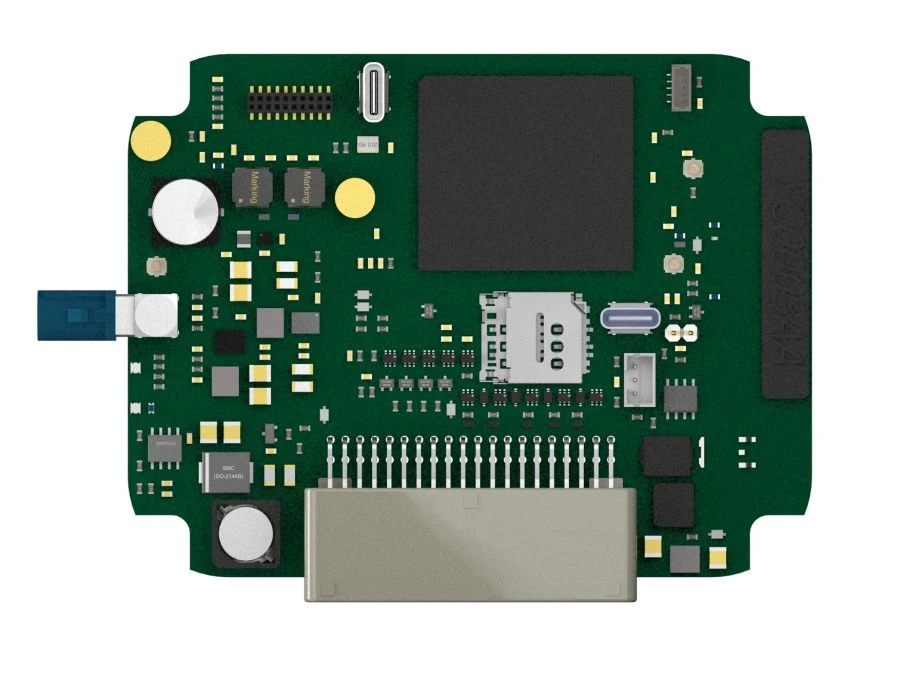

The on-board universal navigation and communication module BUNSM 2 is designed for operation on vehicles with on-board 12V and 24V power supply network. BUNSM 2 refers to the systems of emergency response in accidents "Era-GLONASS" and is designed for installation on vehicles of category M1, M2, M3, N1, N2, N3. It is an automotive system for calling emergency services.

Technical Specifications

Satellite navigation systems	GLONASS/ GPS/ GALILEO
Coordinate error, m	2.5 m
Time error	30
Number of channels	44 pc
Mean "hot start" time	2
Detection sensitivity	147
Tracking sensitivity	161
Acceleration	4
Maximum speed, m/s	515
Maximum height	18000 m
Type of GLONASS/ GPS/ GALILEO antenna	External
Discharge	16
Operating frequency ranges	GSM-900/1800, UMTS-900/2100
Receiver operating frequency ranges	935-960 MHz (GSM-900, WCDMA-900), 1805-1880 MHz (DCS-1800) and 2110-2170 MHz (WCDMA-2100)
Transmitter operating frequency ranges	890-915 MHz (GSM-900, WCDMA-900), 1710-1785 MHz (DCS-1800) and 1920-1980 MHz (WCDMA-2100)
GSM 900 transmitter power	Class 4 (33 dBm)
DCS 1800 transmitter power	Class 1 (30 dBm)
WCDMA transmitter power	900/2100 class 3 (24 dBm)
Type of GSM antenna	Internal GSM/ GPRS/ 3G
Processor type and maximum clock frequency, MHz	ARM Cortex M4F, 240 (operating frequency: 192)
Volume of internal memory, Kbytes	1024 Flash, 224 RAM
Interfaces	RS-485 - 1 pc. , CAN -1 pc, RS-232 - 1 pc, USB 2.0 - 1 pc.
Number of digital inputs	4 pc
Volume of "black box"	Not less than 150000 records
Rated DC supply voltage, V	12/24
Rated voltage of internal Li-Ion battery, V	3.7 V
Capacity of internal Li-Ion rechargeable battery, mAh	2000
Protection against polarity reversal	Got it
Over-voltage protection, V	Up to 1000 short-term
Overall dimensions (DxWxH), mm, not more	Length - 118.4; width - 101.1; height - 27.
Weight, not more, g	200 g

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
