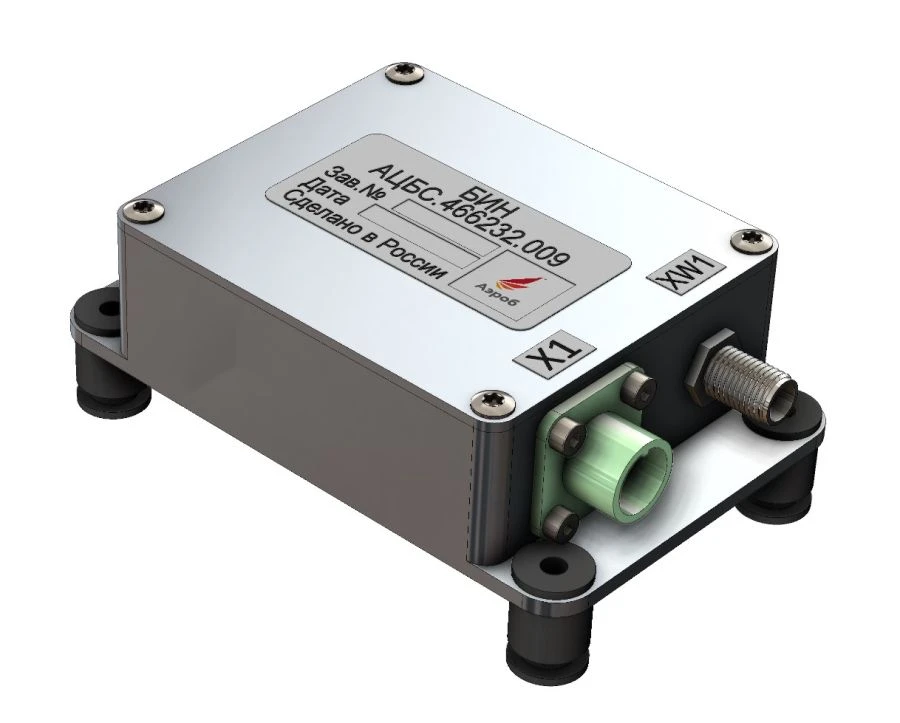

Block of inertial navigation (BIN) ??BS.466232.009

Advanced Navigation Devices

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

Description

Inertial Navigation Unit (INU) is designed to measure angular velocities, linear accelerations, as well as geographical coordinates with high reliability. It can be used in sets of onboard radio-electronic equipment of UAVs of different classes (small, medium and heavy UAVs).

Specifications

Supported Signals L1 GPS C/A, L1 GLONASS ST, GALILEO E1B, E1C SBAS L1

Sensitivity in tracking mode, dBm minus 161

Navigation solution output rate 10

Horizontal co-ordinate accuracy, m <2.5

GNSS module ILTA.464346.002 (PRO-04)

Information interface CAN 2.0A

Housing material Aluminum

Data update frequency 400

Dynamic accuracy of roll and pitch angle measurement 0.8

Operating temperature range, degrees Celsius minus 40 to plus 40

Weight of the device, not more 100 g

Power supply voltage, (two power inputs, main and backup) 10...60 V

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
