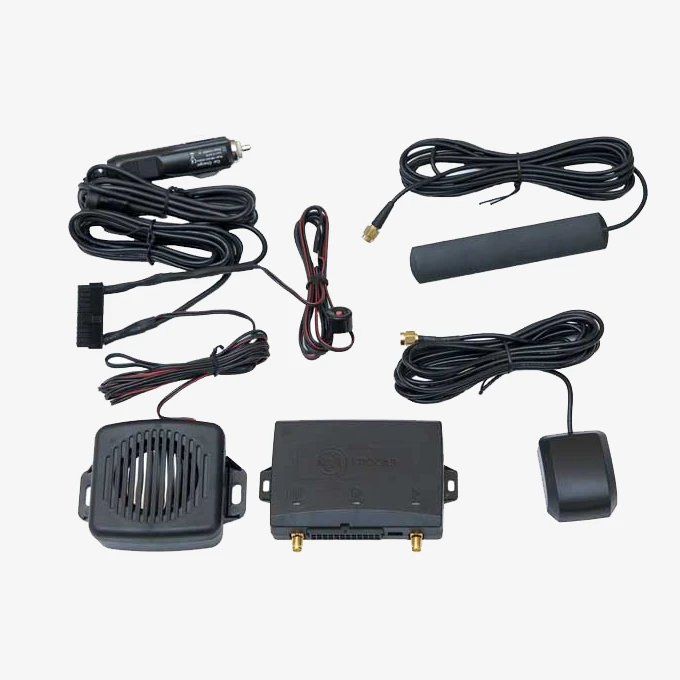

On-board controller BK-131
Manufacturer:
Price:
Request Quote
Bulk pricing available
FOB, CIF & EXW terms available
Key Highlights
- Made in Russia - engineered for durability
- Suitable for challenging environments
- Lower cost of ownership than European alternatives
- Bulk orders available with volume discounts
- Documentation and customs clearance assistance provided
Description
Board controller BK-131 is designed for installation on mobile objects (cars and trucks, self-propelled construction and other equipment) as part of satellite tracking systems.
On-board controller BK-131 provides automatic determination of geographical coordinates of the object and transfer of information to the tracking system server. When peripheral equipment is connected, the controller provides transmission to the server of additional information about the state of the object (fuel level in the tank, temperature in the refrigerator, switching on and off of on-board equipment, etc.).
Controller parameters can be set remotely.
Data exchange between the controller and the tracking system server is performed via GSM/GPRS cellular network using EGTS, Wialon-IPS, NDTP, VEGA protocols.
For registration in GSM network, 2 SIM cards or SIM and SIM-chip of mobile operators are installed in the controller.
On-board controller BK-131 has the ability to connect to 2 CAN-buses, ch...
On-board controller BK-131 provides automatic determination of geographical coordinates of the object and transfer of information to the tracking system server. When peripheral equipment is connected, the controller provides transmission to the server of additional information about the state of the object (fuel level in the tank, temperature in the refrigerator, switching on and off of on-board equipment, etc.).
Controller parameters can be set remotely.
Data exchange between the controller and the tracking system server is performed via GSM/GPRS cellular network using EGTS, Wialon-IPS, NDTP, VEGA protocols.
For registration in GSM network, 2 SIM cards or SIM and SIM-chip of mobile operators are installed in the controller.
On-board controller BK-131 has the ability to connect to 2 CAN-buses, ch...
Specifications
Operating supply voltage
7 to 65 V
Maximum current consumption at 12 V in operating mode when the built-in battery is charged.
0.08 to 0.3 A
Built-in battery capacity
0.56
Hardware protection of the built-in battery against overcharge, full discharge, short circuit.
Armoured glass
Power supply polarity overvoltage protection
Armoured glass
Protection against short-term power surges
200 V
Device operation time from fully charged built-in battery (without external power supply), not less than
6
Time of full charge of the built-in battery, not more
6
Number of navigation receiver channels
72 pc
Sensitivity of navigation receiver
minus 164 dBm
Cold start time
26
Hot start time
1
Total number of universal input lines
6 pc
Maximum number of fuel level sensors connected via RS-485
8 pc
Voltage measurement range of input lines configured as analogue lines
0 to 31 V
Number of controlled output lines
3 pc
Stabilised 12 V output for sensor power supply
Armoured glass
Amount of built-in non-volatile memory
8
Number of stored records in non-volatile memory, not more
100000 pc
Presence of USB-interface for making settings, control and data transfer
Armoured glass
Setting up the device using the configuration programme
Armoured glass
Possibility to update firmware and change settings via GPRS channel
Armoured glass
Availability of the firmware update function
Armoured glass
Possibility to change settings by SMS
Armoured glass
Possibility of optional selection of transmitted parameters to save traffic.
Armoured glass
Automatic detection of operator settings based on SIM card registration data in GSM network
Armoured glass
EGTS protocol support
Armoured glass
Number of servers (IP-addresses) to which telemetry information can be simultaneously transmitted
4 pc
TCP and UDP data transfer capability
Armoured glass
Possibility to work with two SIM-cards
Armoured glass
Number of subscribers for SMS notification
10 pc
Availability of RS-485 interface
Armoured glass
Presence of RS-232 interface
Armoured glass
Ability to work with RFID tag readers
Armoured glass
Presence of CAN-interface with possibility of connection to two CAN buses of the vehicle
Armoured glass
Availability of 1-Wire interface for connection of digital temperature sensors
Armoured glass
Possibility of reading Touch Memory key codes via 1-Wire bus
Armoured glass
Possibility to connect microphone and speaker for two-way voice communication with the driver via voice channel
Armoured glass
Programmable power saving mode with possibility to disable GLONASS/GPS and GSM modules
Armoured glass
Determination of the fact of engine operation by the voltage in the on-board network of the car
Armoured glass
Function of tachometer with revolutions counting
Armoured glass
Operating temperature range
minus 40 to plus 85 °C
Overall dimensions without connectors and antennas
106x63x20 mm
Weight, not more
0.09 kg
Degree of enclosure protection
IP 53
Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
