Available for Import

Base station SR "Polyus"-C

Radar & Navigation Equipment

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

Description

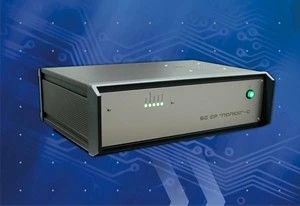

Basic station of the system of radio sounding of the atmosphere "Polyus"-C is designed for round-the-clock operation in stationary, mobile or unified versions, consists of a receiving unit and antenna-feeder system

Specifications

Sensing height 40

Auto tracking range 10 - 250 000 ?

Channel width 8

Step of channel grid 100

Temperature measuring range -90...50 °C

Tolerance limit of absolute error of temperature measurement 0.6 °C

Relative humidity measuring range 0...100 %

Tolerance limit of absolute error of relative humidity measurement in the range of 10-90 % 5 %

Tolerance limit of absolute error of relative humidity measurement in the ranges 0-10 % and 90-100 % 8 %

Atmospheric pressure measuring range 1100 - 2 hPa

RMS error of atmospheric pressure measurement 1 hPa

Method for measuring atmospheric pressure Barometric formula, MEMS on separate order

RMS error of height measurement 10 m

RMS error of coordinate measurement in plan view 15 m

Measurement range of average wind speed 0...200

RMS error of measurement of mean wind speed 0.7

Mean wind direction measurement range 0...360

RMS error of measurement of mean wind direction, not more 1.5

View of telemetry signal Digital

Transmission speed of telemetry information 2400

Telemetry information update period 2

Directional pattern width of the base station antenna in the horizontal plane 360

Directional pattern width of the base station antenna in the vertical plane 170

Power consumption by BS, not more 300 W

Single-phase power supply 220 V, 50 Hz

Receiving frequency range 400.15...406

Weight of operator station equipment, not more 45 kg

Weight of the antenna station equipment, not more 30 kg

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
