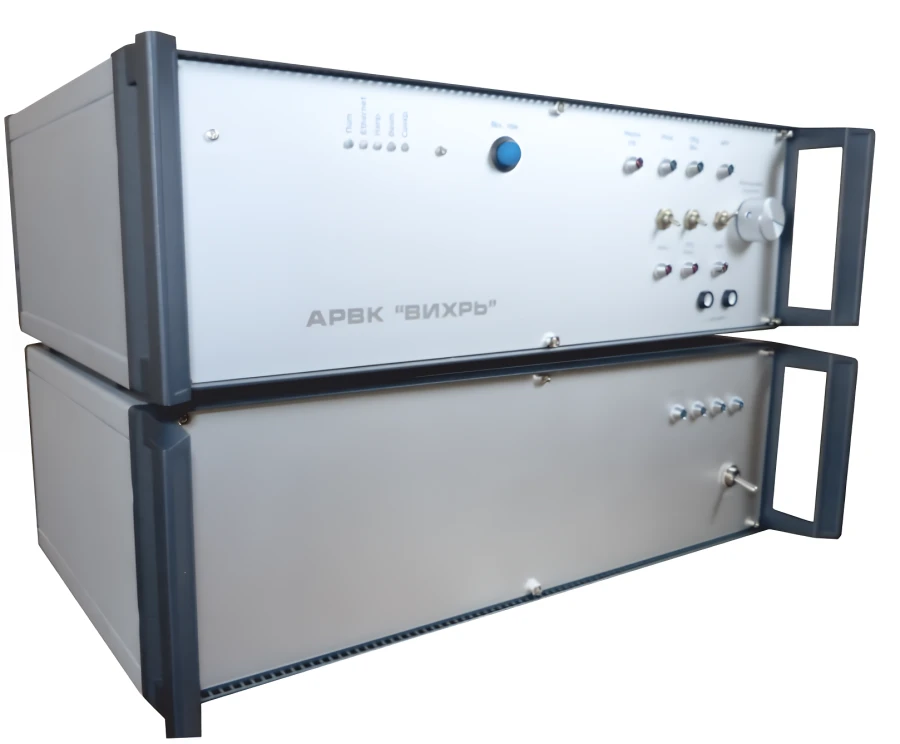

Aerological radar-navigation computer complex "Vihr"

Radar & Navigation Equipment

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

Description

Designed for complex high-altitude atmospheric sounding in radar and/or navigation modes, processing, display and transmission of information at radiosonde altitudes up to 40000 m and range up to 2500000 m

Specifications

Sensing height 40000 m

Auto tracking range 50...250000 m

Carrier frequency of reception radar method 1670...1690

Carrier frequency of navigation method reception 400.15...406

Type of localisation antenna Phased antenna array

Type of navigation antenna Pin

Pulse power of radio pulses of request signal transmitter, not less than 300 W

Near-field directional pattern width of the near-field FAR in the E and H planes at half power level (minus 3 dB) 30

Directional pattern width of the far channel PhAR in E and H planes at half power level (minus 3 dB) 4

Far channel PIR gain, not less than 22

Gain factor of the near-channel FAR, not less than 6

Navigation antenna gain, not less than 5

Temperature measuring range -90...60 °C

Tolerance limit of absolute error of temperature measurement (for MRZ-3MK and H1) 0.6 °C

Relative humidity measuring range 0...100 %

Atmospheric pressure measuring range 1100 - 2 hPa

RMS error of atmospheric pressure measurement 2 hPa

Method for measuring atmospheric pressure Barometric formula

Measurement range of actual and average wind direction 0...360

RMS error of measurement of actual and average wind direction, not more than 5

Actual and average wind speed measurement range 0...150

RMS error of actual and average wind speed measurement, not more 0.7

Angular parameters of localisation antenna rotation by angle of place -10...190

Angular parameters of localisation antenna rotation in azimuth -360...360

Maximum antenna rotation speed in azimuth 60 deg/s

Maximum antenna rotation speed by angle of position 90 deg/s

Single-phase power supply 220 V, 50 Hz

Ambient temperature for ARNVK localisation antenna station -40...50 °C

Ambient temperature for ARNVK navigation antenna station -60...50 °C

Ambient temperature for ARNVK operator station 4...40 °C

Weight of antenna station equipment 200 kg

Weight of the operator station equipment SBVVBG kg

Overall dimensions of the components of the operator station product 400 x 400 x 400 mm

Overall dimensions of the components of the antenna post product 2000 x 2000 x 2500 mm

Tolerance limit of absolute error of relative humidity measurement in the range of 10-90 % 5 %

Autonomous operation time of the ARNVC when powered from the emergency uninterruptible power supply, not less than 60

Power consumption of CNG filling station, not more 400 W

Tolerance limit of absolute error of relative humidity measurement in the ranges 0-10 % and 90-100 % 8 %

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
