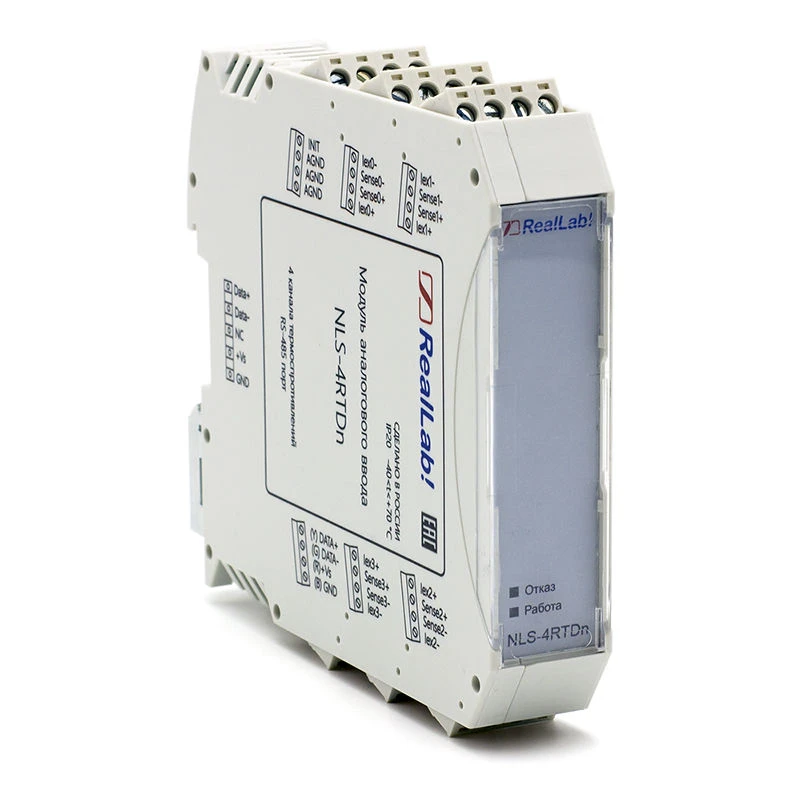

NLS-4RTDn Module of analogue input of thermal resistance signals

Purpose: temperature measurement with thermistor sensorsConnection: 4 differential channels of analogue input signals of thermistor types: Pt50, Pt100, Pt500, Pt1000, 50P, 100P, 500P, 1000P, Cu50, Cu100, Cu500, Cu1000, 50M, 100M, 1000M, 100H, 500H, 1000HMMMeasurement error: not more than 0,1 %Measurement ranges: independent setting of thermoresistance type for each channelConnection diagrams: 4 sensors on 4, 3 or 2-wire connection schemesDigit capacity: 16 digits (ADC)Sensor control: hardware diagnostics of sensor breakageGalvanic isolation: 2500 VTemperature: from -40 to +70SInterface connection: RS-485 interfaceProtocols: DCON and MODBUS RTUPower supply: from 10 to 30VPower consumption: not more than 0.6WMounting: mounting on DIN-railCode OKPD2: 26.51.43.117Dimensions (H x W x D): 109?22,5?113 mmWarranty: 18 months
