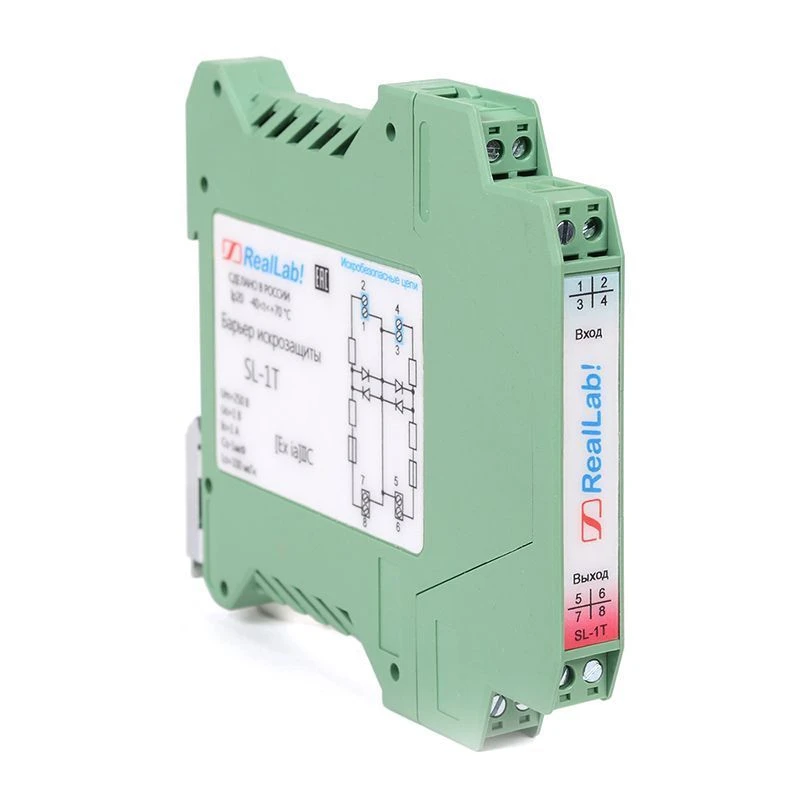

SL-1T Intrinsic protection barrier for transmission of thermocouple signals
Manufacturer:
Price:
Request Quote
Bulk pricing available
FOB, CIF & EXW terms available
Key Highlights
- Made in Russia - engineered for durability
- Suitable for challenging environments
- Lower cost of ownership than European alternatives
- Bulk orders available with volume discounts
- Documentation and customs clearance assistance provided
Description
Purpose: intrinsically safe transmission of thermocouple signals
Intrinsic barrier type:passive
Type of signal/sensor: thermocouples
Number of sensors to be connected: 1
Signal parameters or connection method: voltage, DC, AC, pulse
Signal range:-0.25V to +0.25V
Maximum resistance of one branch: 20 Ohm
Upper limit of signal range:+0.25 V
Rated fuse current: 50 mA
Explosion protection marking: [Ex ia] IIC/IIB/I
Human protection class against electric shock: 01 according to GOST 12.2.007.0-75
Operating temperature range: -40°C to +70°C
Average MTBF: 100000 hrs.
Average service life, not less than 12 years
Overall dimensions (HxWxH): 99x12,5x114,5
Mounting: on DIN-rail
Degree of protection: IR20 according to GOST 14254-2015
Warranty: 36 months
Intrinsic barrier type:passive
Type of signal/sensor: thermocouples
Number of sensors to be connected: 1
Signal parameters or connection method: voltage, DC, AC, pulse
Signal range:-0.25V to +0.25V
Maximum resistance of one branch: 20 Ohm
Upper limit of signal range:+0.25 V
Rated fuse current: 50 mA
Explosion protection marking: [Ex ia] IIC/IIB/I
Human protection class against electric shock: 01 according to GOST 12.2.007.0-75
Operating temperature range: -40°C to +70°C
Average MTBF: 100000 hrs.
Average service life, not less than 12 years
Overall dimensions (HxWxH): 99x12,5x114,5
Mounting: on DIN-rail
Degree of protection: IR20 according to GOST 14254-2015
Warranty: 36 months
Specifications
Overall dimensions (HxWxH):
99x12.5x114.5. mm
Weight, not more:
100 g
Average service life, at least
B1/B8 2100/900 MHz a
Average MTBF:
100000
Guarantee:
NZ-150-14,5
Type of product according to PP RF 616
Other tools and instruments for measurement, inspection and testing
