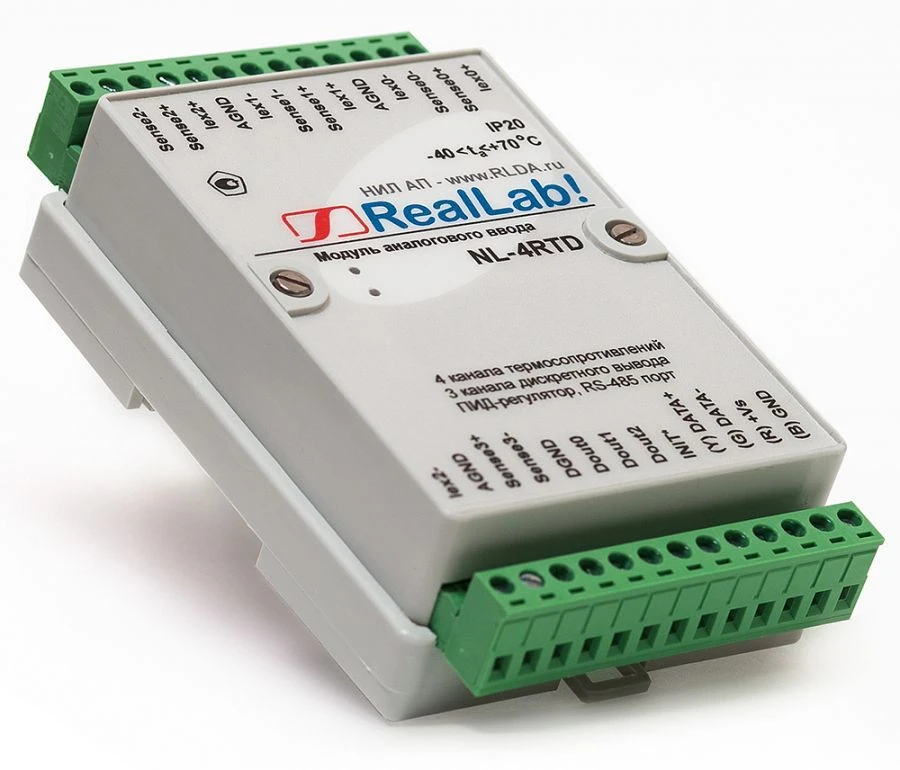

NL-4RTD Thermal Resistance Analog Input Module

Module of analogue input of thermoresistive signals NL-4RTDPurpose:for temperature measurement with TCM, TSP, TCN sensors and temperature stabilisationConnection:4 differential channels of analogue input for thermoresistive transducers TCM, TSP, TCND Measurement ranges:independent setting of measuring ranges for each channel (only for ASCII mode)Connection schemes:4 sensors on 4-wire or 3 on 3-wire connection schemeDigit capacity:16 digitsSensor control:hardware diagnostics of open circuit and k.Galvanic isolation: voltage of galvanic isolation 2500V protection: 11 types of protection: from overvoltage and current overload on input, output, interface, from overheating, static electricity, etc.Measurement error: the basic error of measurement is not worse than 0,05%Interference coefficient: the coefficient of attenuation of the general type of interference with a frequency of 50 Hz - not less than 100 dBTemperature: the range of operating temperature from -40 to +70...
