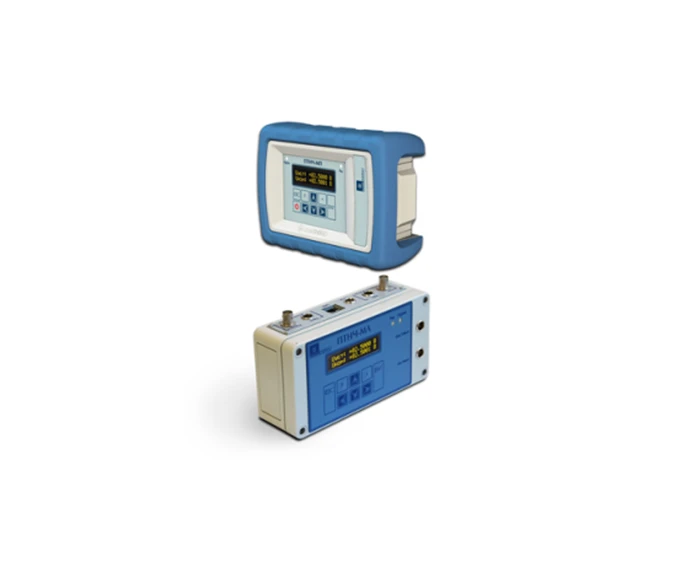

Transducers measuring calibrators PTNCH-M modification PTNCH-ML
Manufacturer:
Price:
Request Quote
Bulk pricing available
FOB, CIF & EXW terms available
Key Highlights
- Made in Russia - engineered for durability
- Suitable for challenging environments
- Lower cost of ownership than European alternatives
- Bulk orders available with volume discounts
- Documentation and customs clearance assistance provided
Description
Precision classes: 0,01; 0,02 or 0,05. State Register Number: 69182-2017
Converters measuring - calibrators PTNCH-M are designed for:
-reproduction of DC voltage, DC strength, frequency of voltage pulse signal;
-measurement of direct current force and conversion of direct current force into pulse repetition rate;
-measurement of DC voltage and conversion of DC voltage into pulse repetition rate;
-measurements of pulse repetition rate and conversion of pulse repetition rate into a DC voltage signal;
-measurement of pulse repetition rate and conversion of pulse repetition rate into a DC signal;
-determination of the frequency of the input pulse signal;
-determination of error of measuring instruments (MI) with pulse output (counters) by comparing pulse repetition rates at telemetric outputs of the investigated (verifiable, adjustable) and reference MI.
Interfaces Ethernet, U...
Converters measuring - calibrators PTNCH-M are designed for:
-reproduction of DC voltage, DC strength, frequency of voltage pulse signal;
-measurement of direct current force and conversion of direct current force into pulse repetition rate;
-measurement of DC voltage and conversion of DC voltage into pulse repetition rate;
-measurements of pulse repetition rate and conversion of pulse repetition rate into a DC voltage signal;
-measurement of pulse repetition rate and conversion of pulse repetition rate into a DC signal;
-determination of the frequency of the input pulse signal;
-determination of error of measuring instruments (MI) with pulse output (counters) by comparing pulse repetition rates at telemetric outputs of the investigated (verifiable, adjustable) and reference MI.
Interfaces Ethernet, U...
Specifications
Housing material
Plastic
Explosion protection
absent
Ambient temperature range
10...35 °C
Metrological requirements
Installed
