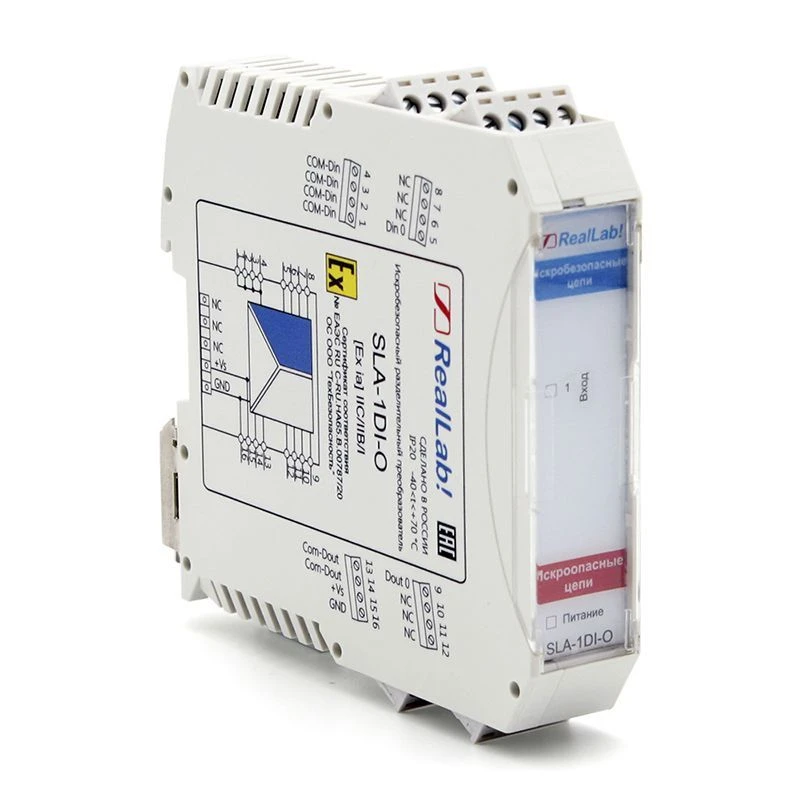

SLA-1DI-O Intrinsically safe binary signal separating converter with open drain outputs

Purpose: intrinsically safe transmission of discrete signals from hazardous area to explosion-proof area
Intrinsic barrier type: active with galvanic isolation
Signal type/sensor: "discrete logic" or "dry contact".
Number of sensors to be connected: 1
Signal parameters or connection method: 0-12 V
Number of output channels: 1
Parameters of outputs "open drain": inward current not more than 0,75 A at external source voltage not more than 35 V
Supply voltage: 10 - 30 V
Power consumption: not more than 1 W
Explosion protection marking: [Ex ia] IIC/IIB/I
Protection class of a person against electric shock: 01 according to GOST 12.2.007.0-75
Operating temperature range: -40°C to +70°C
Average MTBF: 100 000 h.
Average service life, not less than 12 years
Overall dimensions (HxWxH): 99.4x22.5x109
Mounting: on DIN-rail
Degree of protection: IR20 according to GOST 14254-2015
Warranty: 18 months
