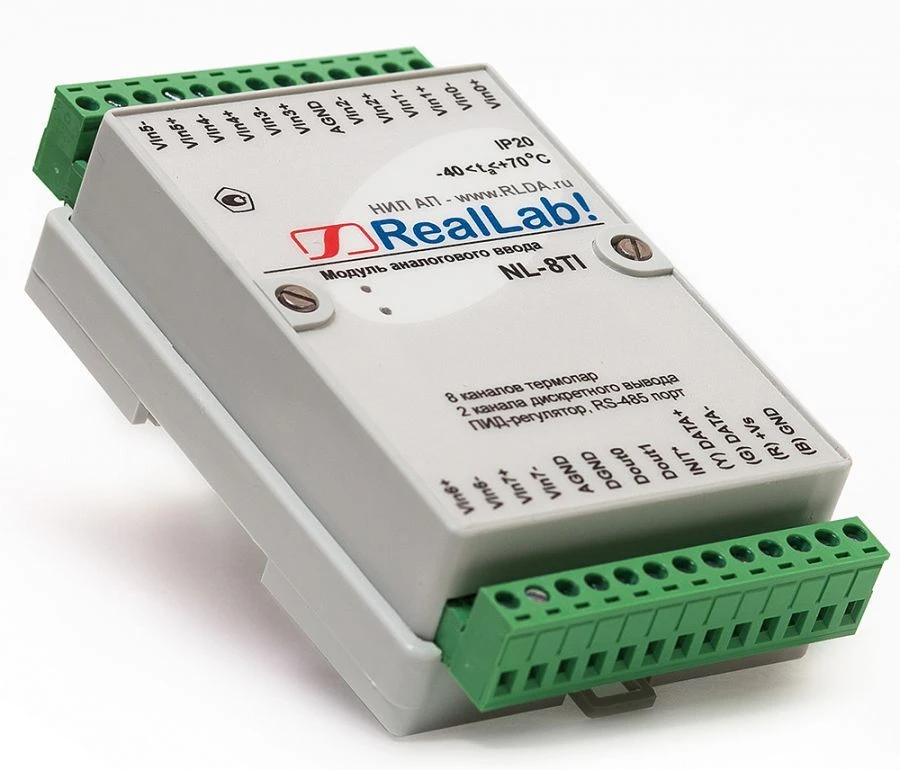

NL-8TI-2 Thermocouple analogue input module

Thermocouple analogue signal input module NL-8TI-2Purpose:for measuring thermocouple signalsConnection:8 differential channels of analogue input signals of thermocouple types K (TCA) J (TZK) B (TPR) L (TCC) E (TCCn) or S (TPP 10%) R (TPP 13%) N (TNN) T (TMK) or voltage with software-settable ranges of 15 mV, 50 mV, 100 mV, 500 mV, 1 V, 2.5 V, or current up to 20 mA Optional 2 isolated discrete output channels, PID and relay controllersDigit capacity:16 digitsSensor control:hardware diagnostics of sensor breakageGalvanic isolation:galvanic isolation voltage 2500 VVProtection types:11 types of protection: against overvoltage and current overload on input, output, interface, overheating, static electricity, etc.Measurement error:basic measurement error is not worse than 0,05%Interference coefficient:the coefficient of attenuation of general type interference with a frequency of 50 Hz - not less than 100 dBTemperature:operating temperature range from -40 to +70 C...
