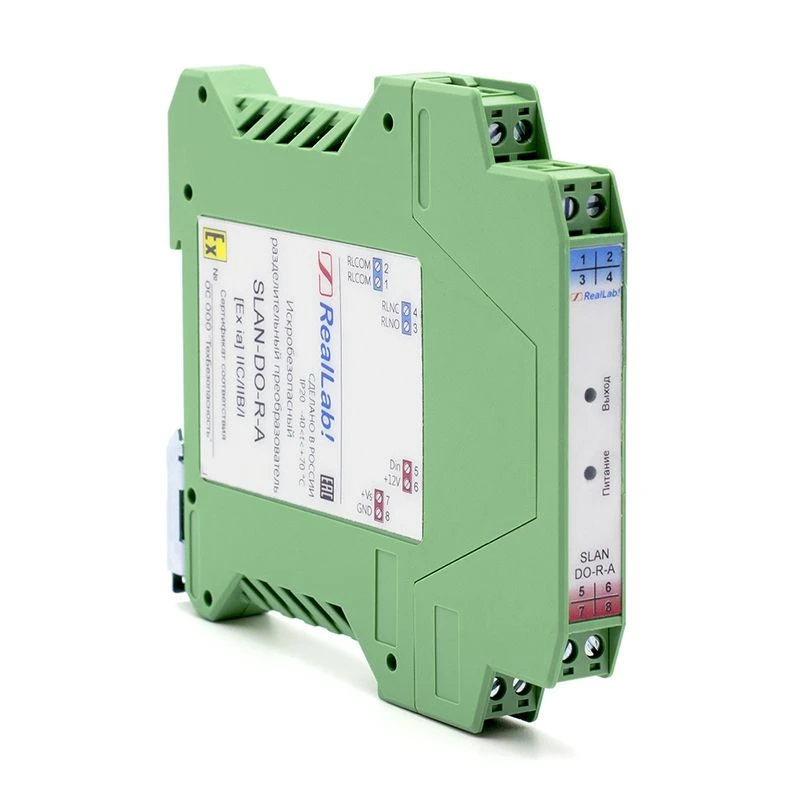

SLAN-DO-R-A Intrinsically safe binary signal divider converter with relay output

Purpose: intrinsically safe transmission of discrete signals from the explosion-proof zone to the explosion-proof zone with relay output and built-in power supply of "dry contacts"
Intrinsic barrier type: active with galvanic isolation
Type of signal/sensor: "discrete logic" or "dry contact".
Number of sensors to be connected: 1
Signal parameters or connection method: 0-30 V
Number of outputs: 1
Relay output parameters: 4 A / 30 V; 0.5 A / 250 V
Galvanic isolation: input, output, power supply - 2500 V
Types of protection: against incorrect polarity connection of the power supply source
Power supply voltage: 10-30 V
Power consumption: not more than 1.5 W
Explosion protection marking: [Ex ia] IIC/IIB/I
Operating temperature range: -40°C to +70°C
Average MTBF: 120 000 hrs.
Average service life, not less than: 12 years
Overall dimensions (HxWxH): 99x12.6x113.6
Mounting: on DIN-rail
Degree of protection: IR20 according to GOST 14254-2015
Warranty: 18 months
