Converters measuring ?? 0304/?3-?-??12

Digital Signal Converters

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

Description

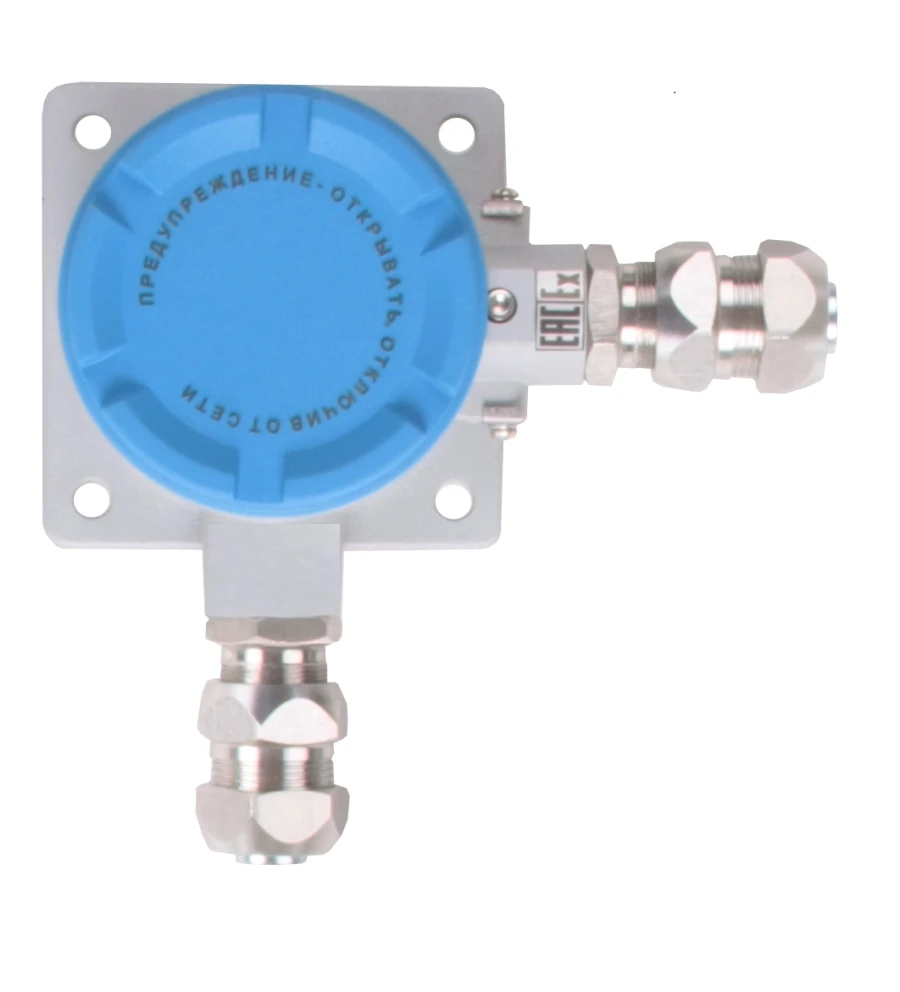

The measuring transducers ?? 0304/M3-N-??12 are designed for measurement and conversion of signals coming from resistance thermocouples (RT), platinum resistance thermocouples (TSP) with individual static characteristics (ISH), thermoelectric converters (TP), potentiometric devices of direct current in a unified output signal of direct current from 4 to 20 mA or from 4 to 20 mA with superimposed on it digital signal via HART protocol. The UUTs are used in various technological processes in industry and power engineering. Connection schemes: 2-, 3-, 4-wire. It is possible to work with a unified voltage signal -100...100 mV and with potentiometric sensor signals (up to 10 kOhm). ?? 0304/M3-N-BP12 is a field version of the measuring transducer. Mounting is carried out on the wall or on the pipe with the help of a bracket.

Specifications

Vibration resistance according to GOST R 52931-2008 Group V3

Explosion protection 0Ex ia IIA T6 Ga X, 0Ex ia IIB T6 Ga X, 0Ex ia IIC T6 Ga X, 0Ex ia IIA T5 Ga X, 0Ex ia IIB T5 Ga X, 0Ex ia IIC T5 Ga X, 0Ex ia IIA T4 Ga X, 0Ex ia IIB T4 Ga X, 0Ex ia IIC T4 Ga X, 0Ex ia IIA T3 Ga X, 0Ex ia IIB T3 Ga X, 0Ex ia IIC T3 Ga X, 1Ex db IIA T6 Gb

Type of digital protocol HART v.7 (4...20 mA)

Mounting of the measuring transducer (MT) On the wall or on a pipe with a bracket

Programmable error current "Low" (3.7...3.8 mA) or "High" (20...23 mA)

Warranty period 24 months (from commissioning) or 36 months (from shipment)

Inspection interval Up to 4 years old

Electromagnetic compatibility (EMC) IIIA

Overall dimensions Width 116 mm (excluding cable glands), height 116 mm (excluding cable glands), depth, 70 mm

Power supply voltage =16...42 B

Degree of protection against dust and moisture IP54 or IP56

Output signal, mA 4...20

Climatic version UHL1 according to GOST 15150-69 (in extended temperature range)

Type (NCC) of primary converter CWD (ISX), 50M, 100M, 50P, 100P, Pt100, Pt500, Pt1000, 100H, 1000H, TJK(J), TMK (T), TKKn (E), TKK(L), TCA(K), TPP(S), TPP (S), TPP(B), TNN(N), TWR (A-1), -100 mV....+100 mV, -1000 mV...+1000 mV, 400 Ohm, 4000 Ohm, 10 kOhm

Compliance with GOST R IEC 61508-2-2012 "Functional safety of electrical, electronic, programmable electronic systems". Safety Integrity Level 2 (SIL 2)

TC connection diagrams 2-, 3-, 4-wire

Minimum measured temperature From minus 210 C

Maximum measured temperature Up to +1820 C

Possibility of simultaneous operation with two TCs using 2-wire scheme or with two TPs using built-in CHS Armoured glass

Accuracy class Up to 0.05 C (depending on the type of NCS)

Execution General industrial, Explosion-proof "intrinsically safe circuit i", Explosion-proof "flameproof enclosure d"

Types of cable glands PGM, PLT164, 20 KHK Ni, 20 KHH Ni, 20 KBU Ni, 20 CST Ni, 20 KNH Ni, 20s KMP 045 Ni, 20 KMP 050 Ni H, 20 KMP 080 Ni (nickel-plated brass)

Presence of indicator red coloured LED indicator (optional)

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
