Navigation radar station (NRS) "GALS"

Radar Equipment

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

Description

X-band, 3 cm.

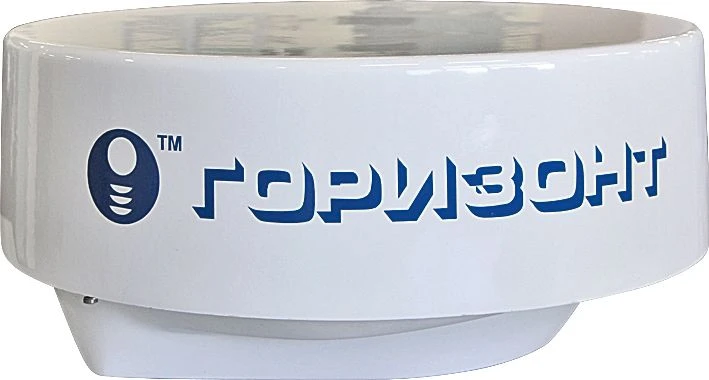

Antenna 2 ft (radome)
Semi-direct drive antenna rotation drive 24 rpm, 48 rpm (optional)
Transmitter power 4kW
Directional resolution 4.6°
Range resolution max. 20m
Antenna with Ethernet interface (optional)
Provides:
detection and over-water object detection in conditions of passive and active unintentional interference with a range of up to 24 NM (32 option)
interaction with a wide range of interfaced equipment: gyrocompass, LAG, GNSS, echo sounder, etc.
automatic tracking of up to 10 (option - up to 50) targets with indication of proximity parameters with frontal hazard warning (ATS)
playback of manoeuvre for safe divergence from the target by the course and (or) speed of own ship (option)
joint operation with ATS with AIS, extended display of navigation and rescue aids AtoN, MOB, EPIRB, SART, SAR (option)
joint display of electronic charts in S-57 S-63 formats, electronic route map and RLI (option)

Specifications

Vessel displacement 400 t

Supply voltage 24 V

Power consumption 60

Number of automatically escorted targets 10 pc

Effective diameter of the radar image 150 mm

Directional resolution, degree 3.9...4.6

Range resolution on a range scale of 1.5 miles 20 m

Minimum detection range of an average offshore buoy at antenna mounting height of 7 m 25 m

Maximum detection range of an average offshore buoy at antenna mounting height of 7 m, miles 2

Maximum detection range of an average offshore buoy at antenna height of 15 m, miles 2

Maximum value of the operating temperature range 55 °C

Minimum value of the operating temperature range -10 °C

Maximum increased relative humidity during operation 95...100 %

Additional indicator as part of the product Option

Interaction with the AIS system Option

Resistance to condensed sediments Armoured glass

Number of simultaneously escorted targets, not less SBVVBG pc

Maximum instrument range 32

Pulsed transmitter power (nominal) 4 kW

Operating frequency 9380...9440

Position angle resolution 1

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
