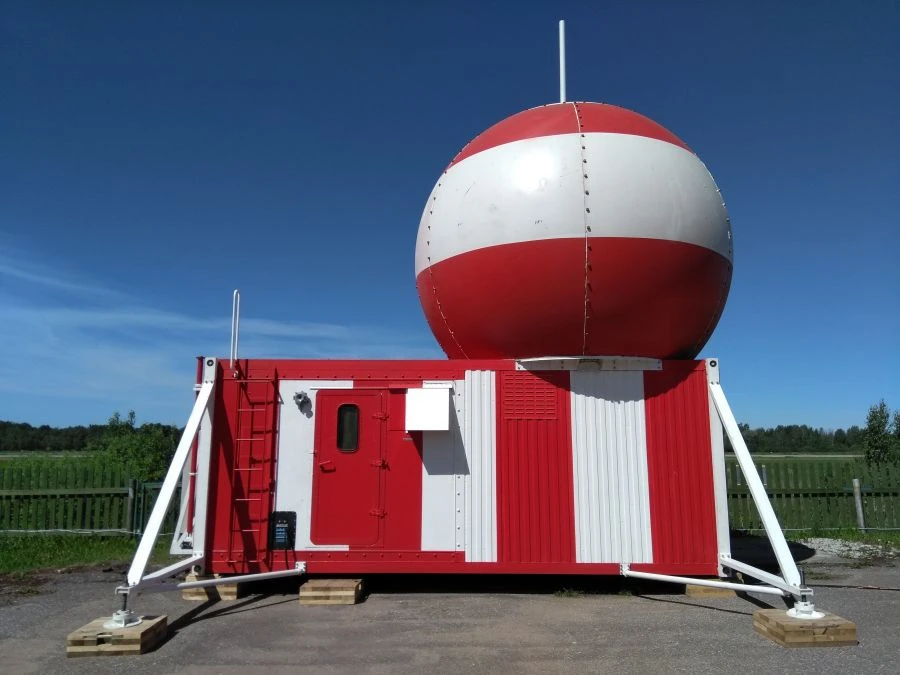

Aerodrome radar complex for regional aerodromes "RLK-10RA"

Radar Equipment

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

Aerodrome radar complex (ARLC) for regional airports "RLC-10RA" with primary S-band surveillance channel and secondary surveillance channel in RBS mode fully meets the requirements of international standards, RF standards and Federal Aviation Regulations. The complex provides: detection and determination of aircraft coordinates (AC) on the primary channel; detection and determination of AC coordinates, which are in the APJIK visibility zone; receipt and processing of additional information from AC; identification of coordinate and additional information of the primary and secondary channels; issuance to air traffic control systems (ATC) radar information on the location of AC observed on the primary channel; issuance to ATC systems of secondary radar information on the location of AC in the RBS mode.

Technical Specifications

Frequency of supply voltage	SBVVBG
Supply voltage	380 V
Power consumption	10000
Directional resolution, degree	2
Range resolution on a range scale of 1.5 miles	70 m
Minimum detection range of an average offshore buoy at antenna mounting height of 7 m	500 m
Maximum detection range of an average offshore buoy at antenna mounting height of 7 m, miles	100
Maximum detection range of an average offshore buoy at antenna height of 15 m, miles	300
Maximum value of the operating temperature range	SBVVBG °C
Minimum value of the operating temperature range	-50 °C
Maximum increased relative humidity during operation	98 %
PORL antenna type	mirrored biparabolic louvre
Type of MVRL antenna	phased array
Presence of automated control and management system (ACCS)	Available
Operating frequency range of the primary channel	2800...3050
Observation in RBS and S modes, not less than	300
Maximum range on the primary channel, not less than	100
Maximum instrumental range on the primary channel, not less than	100
Maximum range of observation in A/C and S modes, not less	300
Minimum instrumental observation range in A/C and S modes, max.	1
Resolution of digital output on the secondary channel in the RBS mode by azimuth, not more than	1...5
Primary channel operating frequency range	2800...3050
Secondary channel operating frequency range	1090

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
