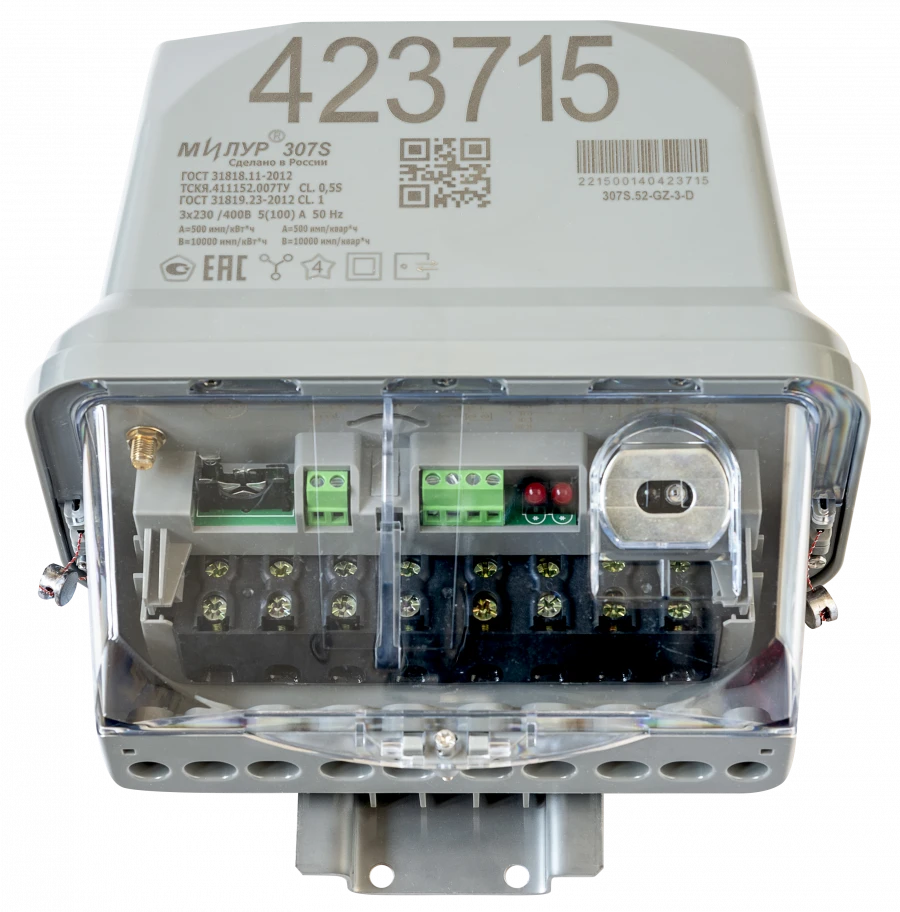

Milur 307S.52-ZZ-3-D static energy meter
Manufacturer:
Price:
Request Quote
Bulk pricing available
FOB, CIF & EXW terms available
Key Highlights
- Made in Russia - engineered for durability
- Suitable for challenging environments
- Lower cost of ownership than European alternatives
- Bulk orders available with volume discounts
- Documentation and customs clearance assistance provided
Description
Milur 307 static three-phase electricity meter with SPODES protocol support in SPLIT case for outdoor installation with load control relay is designed for metering active and reactive electricity consumption in two-wire AC network with frequency 50 Hz.
The metering device can operate both autonomously and as part of automated metering systems, recording electricity consumption and storing data in non-volatile memory.
Data exchange with automated accounting systems or computer is carried out via RF 433 MHz radio interface using Mi107 protocol.
The measuring unit of the outdoor metering device transmits information about the consumed volume of electricity to the measuring unit of the consumer indication "Milur T" via RF 433 MHz radio interface according to Mi107 protocol.
The metering device is equipped with an opto-port.
The metering device can operate both autonomously and as part of automated metering systems, recording electricity consumption and storing data in non-volatile memory.
Data exchange with automated accounting systems or computer is carried out via RF 433 MHz radio interface using Mi107 protocol.
The measuring unit of the outdoor metering device transmits information about the consumed volume of electricity to the measuring unit of the consumer indication "Milur T" via RF 433 MHz radio interface according to Mi107 protocol.
The metering device is equipped with an opto-port.
Specifications
Nominal voltage
230...400 V
Rated current
5 A
Accuracy class
0,5S/1
Mounting method
To the screws
Maximum current
100 A
Maximum operating temperature
70 °C
Minimum operating temperature
-50 °C
Type of metered energy
Active and reactive
Type of readout device
Electronic
Number of phases
3
Type
Multi-tariff
Type of product according to PP RF 616
Other tools and instruments for measurement, inspection and testing
Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
