M2M-1 single-phase multifunctional energy meter

Electricity Meters

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

Description

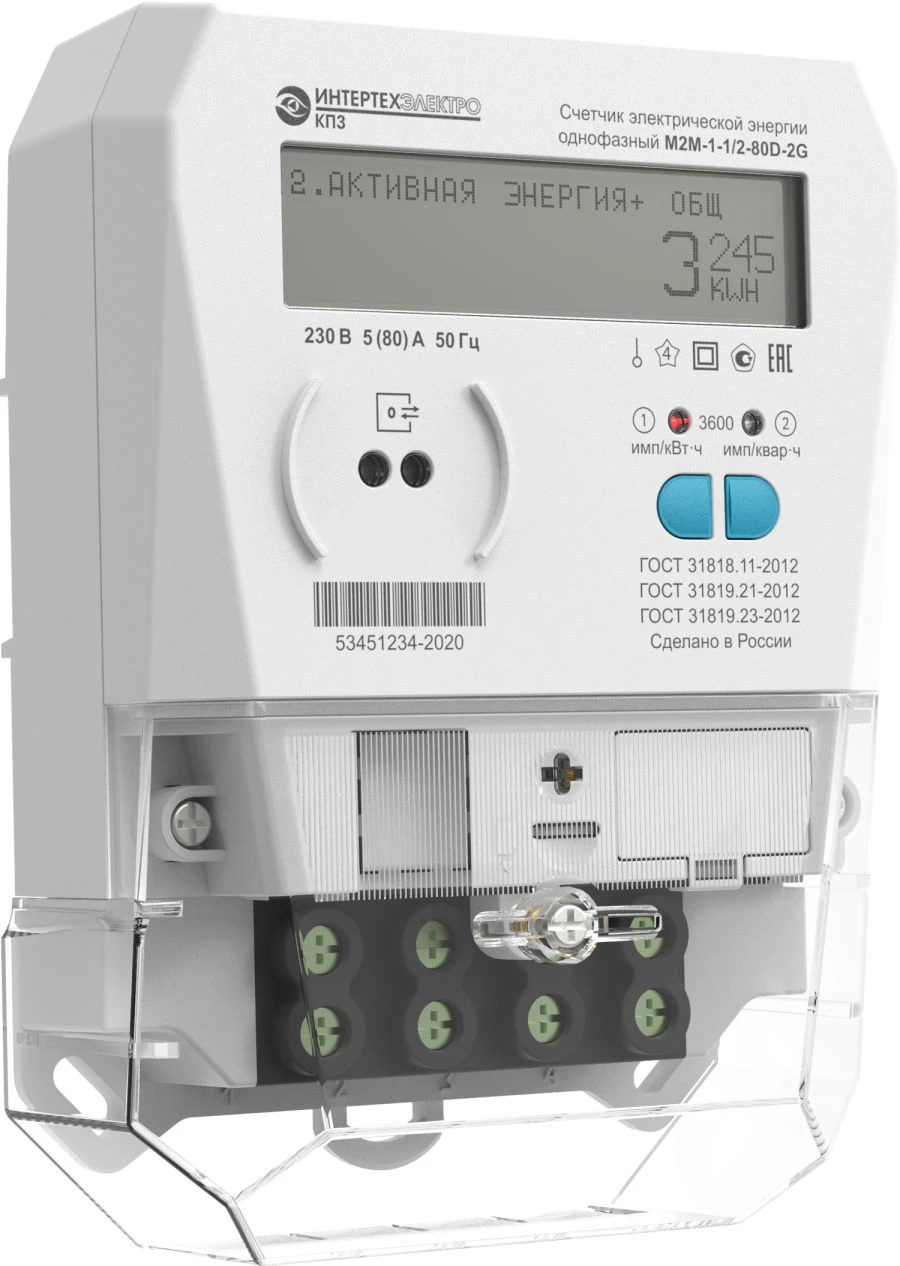

Multifunctional single-phase electricity meter M2M-1 is designed for multi-tariff metering of active and reactive electricity of forward and reverse directions in single-phase AC networks. It can be used both autonomously and as part of automated information and measurement systems for electricity metering under the SPODES protocol (IEC62056 DLMS/COSEM). Field of application: enterprises of power engineering, industry, agriculture and housing and communal services; suitable for metering in apartment buildings and private sector.

Specifications

Type Multi-tariff

Number of phases 1

Nominal voltage 230 V

Minimum operating temperature -40 °C

Maximum operating temperature 70 °C

Maximum current 100 A

Rated current 5 A

Type of readout device Electronic

Type of product according to PP RF 616 Instruments and other instruments for measurement, control and testing

Operating voltage range 160...265 V

Degree of protection against penetration of solid objects and water according to GOST 14254-2015 IP51

Accuracy class for active energy 1,0

Accuracy class for reactive energy 2,0

Mounting type DIN rail or screws

Dimensions, DxWxH, mm, not more 175x121x62

Main communication channel 2G (GPRS)

Backup communication channel RS-485; RF; LoRa; PLC; Ethernet; BLE*

Supported protocols SPODES

Weight 0.7 kg

Type of metered energy Active and reactive

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
