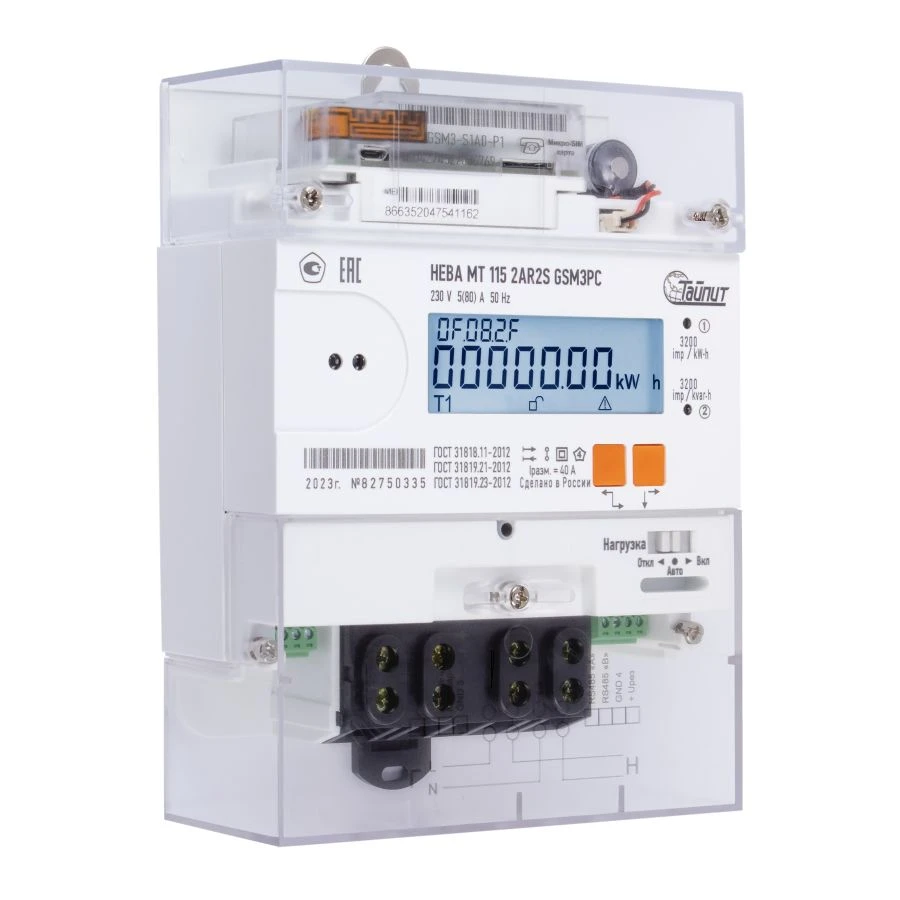

Electric energy meters single-phase multitariff NEVA MT1

The devices are designed to measure active (in two directions) and reactive (depending on the direction of active energy and by quadrants) energy in single-phase AC circuits of nominal frequency 50 Hz, its accounting at four rates differentiated by time. They can be used in AIMS. Support the SPODES protocol. Provide the necessary functionality in accordance with PP No. 890 of 19.06.2020. Installation indoors or in cabinets providing additional protection from environmental influences. Including: current and voltage sensors, power supply and backup power supply, system-on-chip with real-time clock, non-volatile memory, backlit LCD, measuring and interface circuits, optical pulse and test outputs. Equipped with electronic seals of the housing and terminal block cover, built-in trip unit, magnetic field sensor. They have the function of PCE measurement in accordance with GOST 30804.4.30-2013, class S.
