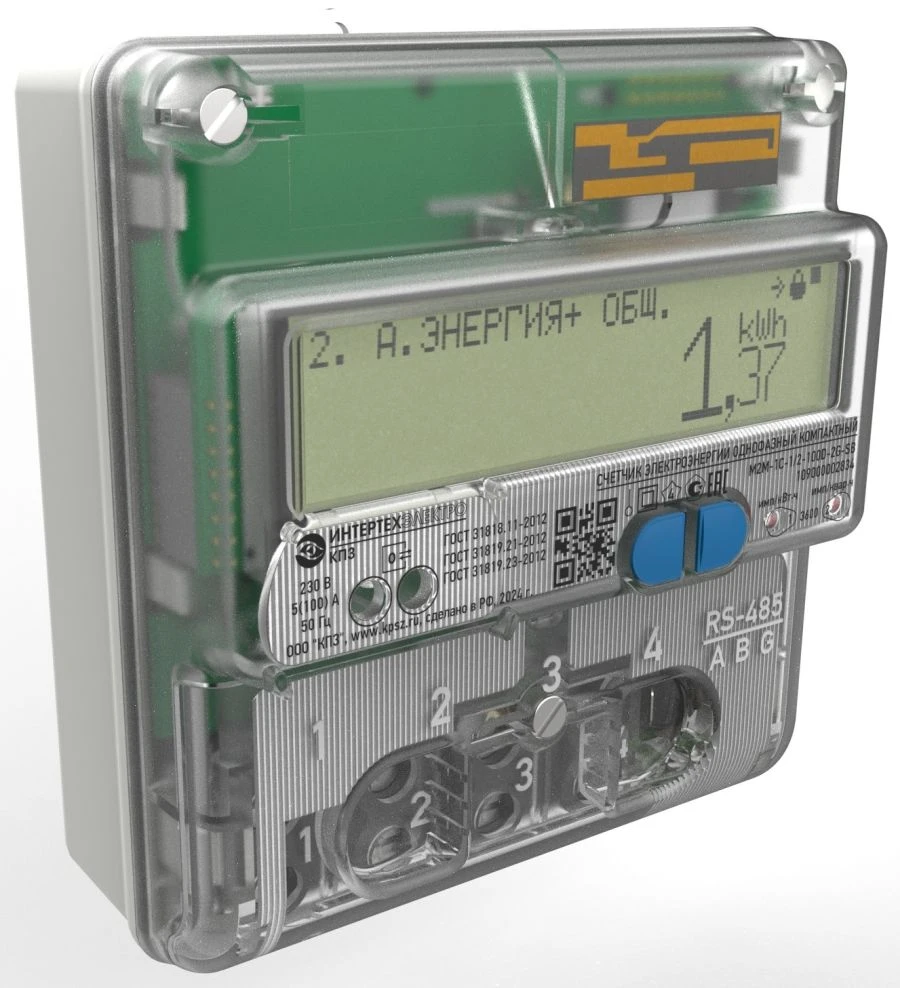

M2M-1C compact single-phase electricity meter

Electricity Meters

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

Description

The M2M-1C is a static meter of single-phase compact static M2M-1C designed for measurement and multi-tariff accounting of active and reactive electrical energy of forward and reverse directions in single-phase AC networks of industrial frequency. The meter can be used both autonomously and as part of automated information and metering systems for electricity metering SPODES (IEC62056 DLMS/COSEM). The meter is designed for use in closed rooms in the operating range of ambient temperatures from minus 20 C to +45 C and relative humidity up to 95% at +30 C, operation in the range of limiting ambient temperatures from minus 40 C to +70 C is allowed.

Specifications

Number of phases 1

Type Multi-tariff

Type of readout device Electronic

Maximum operating temperature 70 °C

Rated current 5 A

Maximum current 100 A

Nominal voltage 230 V

Minimum operating temperature -40 °C

Degree of protection against penetration of solid objects and water according to GOST 14254-2015 IP51

Operating voltage range 160...265 V

Type of product according to PP RF 616 Instruments and other instruments for measurement, control and testing

Accuracy class for active energy 1,0

Accuracy class for reactive energy 2,0

Mounting type DIN rail or screws

Main communication channel 2G (GPRS)

Backup communication channel RS-485; Bluetooth Low Energy (BLE); none*

Supported protocols SPODES

Weight 0.5 kg

Type of metered energy Active and reactive

Dimensions, HxWxH, mm, not more than 123x106x63

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
