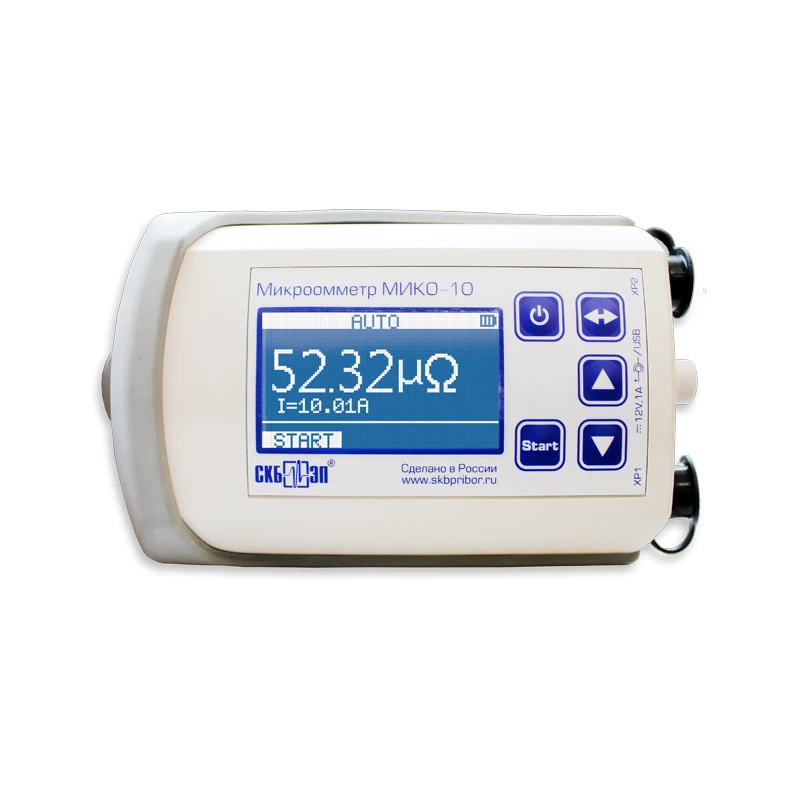

Micro-ohmmeters MIKO-10

Small-size wrist micro-ohmmeter is designed for express measurements of electrical resistance to direct current in the range of 1 ÷ 100 000 µOhm with a small error of ± 0.2% at a current of 10A. MIKO-10 has a special algorithm for measuring transient resistances of high-voltage circuit breakers with built-in CTs. The built-in battery of the MIKO-10 micro-ohmmeter ensures its autonomy and has a capacity sufficient for 1000 measurements at a maximum current of 10A. The device has a non-volatile memory of up to 100 measurements, which is sufficient for a complete comprehensive inspection of the CHPP. Communication with a personal computer via USB allows to systematise and save the results on the computer, as well as to generate measurement reports. The instrument is housed in a unique ergonomic case that fits comfortably on the arm with tension straps, leaving both hands free for easy measurement. In addition, the instrument can be easily removed from the arm and secured n...
