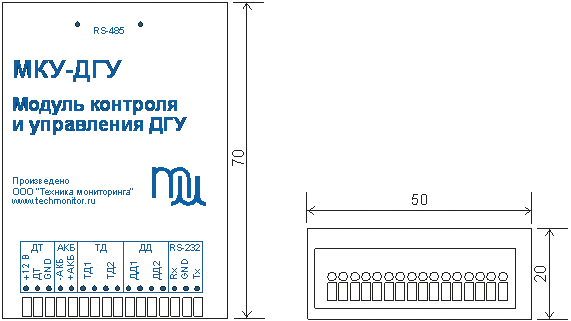

CCGT control and management module "MKU-DCGT"

The product is designed to control and manage DGU via intelligent
interfaces, control of fuel sensor, temperature and battery.
The product contains RS-485 serial interface for integration into the monitoring system, an input for connection to the AKB.
monitoring system, input for connection to the battery, input for connection to the fuel sensor, 2 inputs for connection to the thermo
fuel, 2 inputs for connection of temperature sensors, 2 inputs for connection of "dry contacts" and RS-232 interface for monitoring system.
and RS-232 interface for connection to the intelligent panel of the DGU.
The product evaluates with increased accuracy the value of voltage
on the battery, determines the level of fuel in the tank, assesses the temperature received from 2 temperature sensors, monitors the temperature of the battery.
from 2 temperature sensors, monitors the state of 2 "dry contacts" and exchanges data with the intelligent panel DGU.
data exchange with the intelligent panel of the CCGT. The measured data transmission and control
is carried out via RS485 interface. The product is powered from an external
voltage source.
