Signal generator G4-219

Electrical Measurement Instruments

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

Description

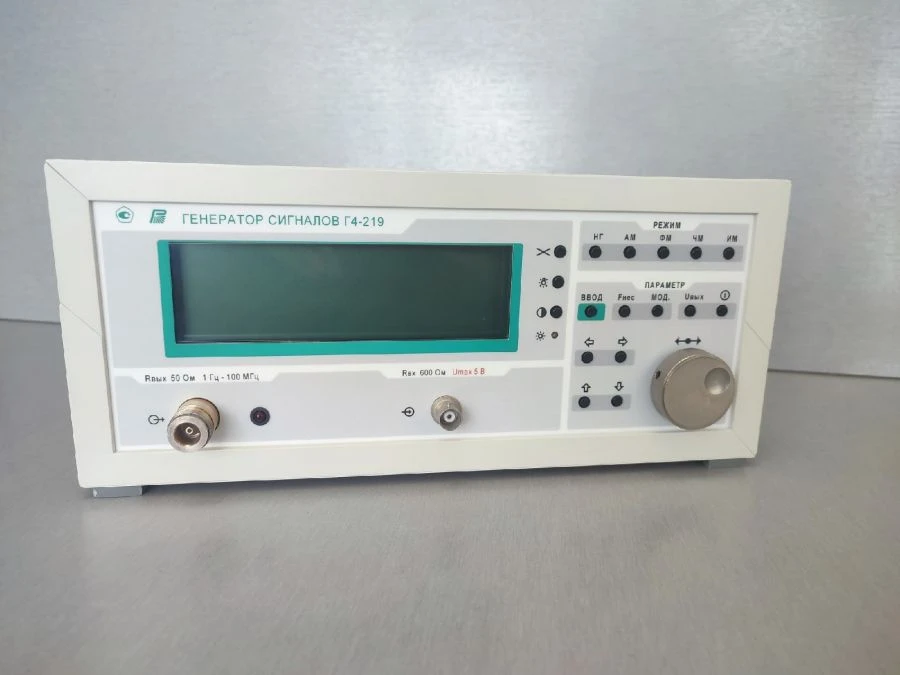

G4-219 signal generator is a desktop digital
generator of general purpose. It is intended for use as a source of
signal at regulation, repair and verification of radio-electronic equipment of various
as well as for use as embedded heterodynes in complex automated radio measuring systems.
automated radio measuring systems. Operating modes :1) Unmodulated generation (UG). 2) Amplitude modulation (AM).
3) Amplitude-pulse modulation (AIM). 4) Frequency modulation (FM). 5) Phase modulation (PM).

Specifications

Oscillator operating frequency range 1 Hz to 100 MHz (for all modes)

Amplitude Modulation (AM)-maximum output level without modulation 0.5 V

(AM): operating frequency range of the internal oscillator modulating frequencies from 0.1 Hz to 100 kHz with a tuning step from 0.1 Hz to 10 Hz, the error of setting the modulating signal frequency is not more than ± 5-10-5 fm, where fm is the modulating frequency of the oscillator.

(AM): amplitude modulation factor from internal oscillator Adjustable from 0 % to 99.9 % in 0.1 increments. %

AM factor setting error not more than ± 1 %

(AM): operating frequency range of an external modulating complex waveform source 10 Hz to 20

Amplitude pulse modulation (APM) mode: operating range of fill frequency From 1 Hz to 100 Hz

(AIM): Filling frequency setting step 0.001 Hz to 10 Hz

(AIM): depth of IM At least 50

(AIM): operating frequency range of the external modulating digital signal of the TTL level up to 1

Frequency Modulation (FM) mode: modulating frequency range of sine and rectangular signals. From 0,1 Hz to 100 kHz, with tuning step from 0,1 Hz to 10 Hz and modulating signal frequency setting error not more than 5-10-5, frequency deviation from 1 Hz to 100 kHz with step from 1 Hz to 0,1

(FM): durations of linearly increasing and linearly decreasing parts of the triangle envelope of the signal independently adjustable from 1 ms to 600 s in steps from 1 ms to 0.1 s, frequency increment from the carrier at the end of the linearly increasing section adjustable from 1 kHz to 50 MHz in steps from 1 Hz to 10 Hz

(HF): operating frequency range of an external modulating source of a complex waveform 10 Hz to 20

Phase modulation (PM) mode:modulating frequency operating range from 0,1 Hz to 100 kHz with a tuning step from 0,1 Hz to 10 Hz

(FM): deviation setting error 0.2 %

(FM): operating frequency range of an external complex waveform modulating source 10 Hz to 20

Instrument weight Does not exceed 3.5 kg

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
