Recorder of electrical processes digital "PARMA RP 4.11" (line of devices, Version 1)

Electrical Measurement Instruments

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

Description

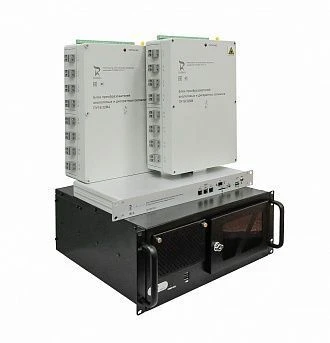

Registrator "PARMA RP4.11" is designed to measure voltage and DC current strength, current values of voltage and AC current strength, frequency, active, reactive and total power; as well as for registration, storage and analysis of information on stationary and transient processes, registration of emergency events (RAS) and transient monitoring systems (TMS), preceding and accompanying emergency deviations of parameters in electrical networks and machines; registration, storage and analysis of information on stationary electrical networks and machines; registration, storage and analysis of information on transient and transient processes. The principle of operation is based on the conversion of input analogue signals of voltage and current and the state of discrete signals into digital form, with time synchronisation of measured values; registration, storage and display of measured information.

Specifications

Defense Relay protection and automation device

Performance -1000000

Equipment Registration unit, external receiver of GLONASS/GPS time synchronisation, Block of output discrete signals BS4, Blocks of converters of analogue and discrete signals PU16/32 and/or Blocks of converters of discrete signals BPD128, USB distributive/service u

Phase angle measurement (USVI function) 0...360

Number of analog input channels 0-176

Mark PARMA "RP 4.11" (range of devices Version 1)

Designation Recorder of electrical processes digital "PARMA RP 4.11" (line of devices, Version 1)

Number of analog input channels 0-176

Number of discrete input channels 0...1408 pc

Measurement of the effective value of AC voltage 0.0007...460 V

Measurement of DC voltage 0.001...650 V

Measuring the strength of direct electric current -350000...25 A

Measuring the frequency of alternating electric current 40...65

Measuring the phase angle between the voltage and current of one phase of the fundamental frequency 0...360

Power measurement in phase Active power (W): 0 to (Uc x Ic); Reactive power (var): 0 to (Uc x Ic); Total power (V*A): 0 to (Uc x Ic)

Power measurement by three phases Active power (W): 0 to 3x(Uk x Ik); Reactive power (var): 0 to 3x(Uk x Ik); Total power (V*A): 0 to 3x(Uk x Ik).

Measurement of the effective value of forward, zero or reverse sequence voltage (USVI function) 0...460 V

Measurement of the effective value of alternating electric current (USVI function) 0.025...6.5 A

Measurement of the effective value of forward, reverse or zero-sequence electric current (USVI function) 0...6.5 A

Measurement of phase angle between voltage and current of one phase of fundamental frequency (USVI function) 0...360

Measurement of forward, reverse and zero sequence active power (USVI function) 0 W to (Uc x Ic) W

Measurement of reactive power of forward, reverse and zero sequence (USVI function) от 0 вар до (Uк х Iк) вар

Measurement of total power of forward, reverse and zero sequence (USVI function) 0 V*A to (Uc x Ic) V*A

Measurement of the effective value of alternating electric current force -250000...200 A

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
