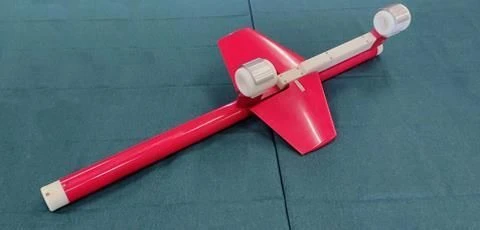

Mechanical control module "Ptitsa-M" on depth of towed seismic slopes

The software and hardware complex of acoustic positioning and mechanical control of towed seismocos "Ptitsa-M" contains modules of mechanical control - up to 30 pieces for one seismocos and 300 pieces for 3D seismic survey system consisting of 10 seismocos.
Ptitsa-M modules are installed at a certain distance along the seismic slice and allow to dynamically hold it at a given depth.
OBJECTIVITY:
- The attachable module of mechanical positioning of towed seismic slides is designed for stabilisation and control of the spatial position of seismic slides during 2D and 3D seismic surveys
- The purpose of the equipment is realised by changing the angle of inclination of hydrodynamic elements (wings) relative to the hull on the basis of the task received through the seismocosse data transmission system, and by measuring its own depth received from the built-in pressure sensor.
