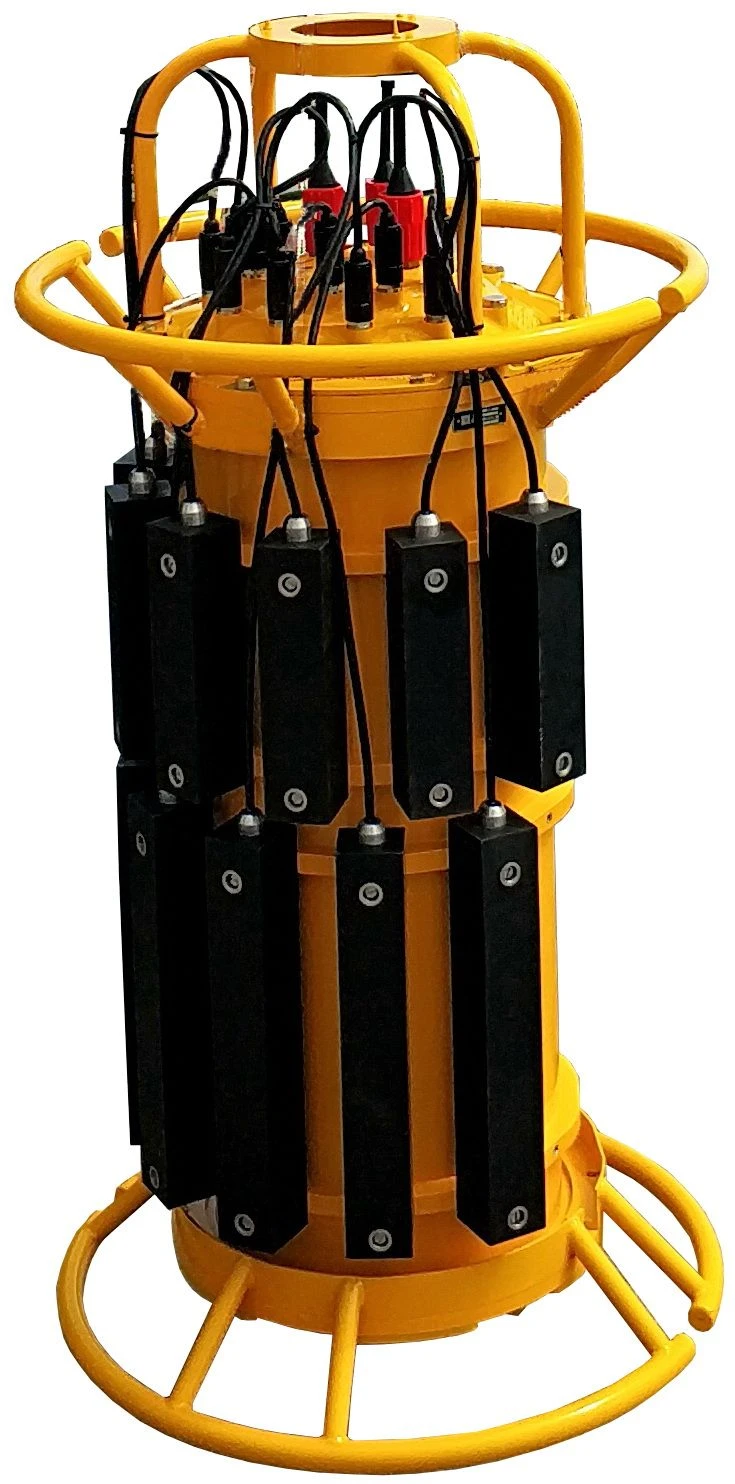

Sector view sonar complex "Dolphin"
Manufacturer:
Price:
Request Quote
Bulk pricing available
FOB, CIF & EXW terms available
Key Highlights
- Made in Russia - engineered for durability
- Suitable for challenging environments
- Lower cost of ownership than European alternatives
- Bulk orders available with volume discounts
- Documentation and customs clearance assistance provided
Description
The sector view sonar complex is designed for protection of objects from the side of the water area.
In the process of operation the complex provides solution of the following tasks:
- illumination of the underwater situation in the sonar mode;
- detection, determination of coordinates and movement parameters of underwater objects;
- control of technical condition of all system components and localisation of failures with the accuracy of a typical replacement element;
- automated classification of detected underwater objects with the probability of correct classification not less than 0.7;
- automatic tracking of underwater objects.
The complex has several versions (modifications) depending on the required viewing sector in the horizontal plane: 180 deg. and 360 deg..
In the process of operation the complex provides solution of the following tasks:
- illumination of the underwater situation in the sonar mode;
- detection, determination of coordinates and movement parameters of underwater objects;
- control of technical condition of all system components and localisation of failures with the accuracy of a typical replacement element;
- automated classification of detected underwater objects with the probability of correct classification not less than 0.7;
- automatic tracking of underwater objects.
The complex has several versions (modifications) depending on the required viewing sector in the horizontal plane: 180 deg. and 360 deg..
Specifications
Type
Detection range
Measuring range
1...500
Measurement time
1
Range resolution
15 mm
Horizontal field of view
180;360
Working depth range
2...40 m
Gamma per cent lifetime
13 a
Gamma per cent resource
25000
Shelf life
5 a
Warranty period of operation
13 a
Overall dimensions (diameter x height)
600-1210 mm
Product weight
110
Ability to operate multiple CGSOs in the same frequency band
Available
Maximum immersion depth
20 m
Sector of view in the vertical plane
22
Operating temperature range
-4...50 °C
Input supply voltage
27 V
Type of signal used
Broadband
Scuba diver detection range
300 m
Energy range of object detection with Re=0,1
200 m
Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
