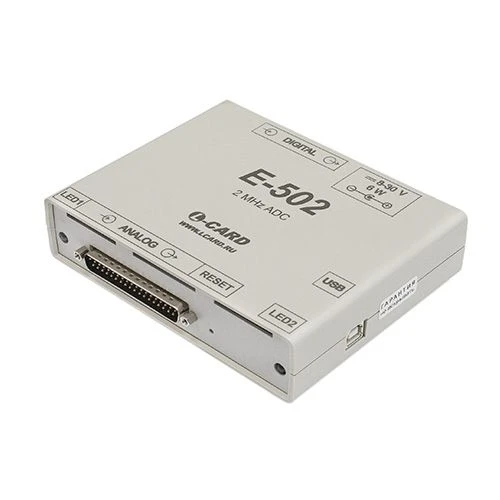

Measuring voltage converter L-CARD modification E-502-P-EU-D-I

Electrical Measurement Systems

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

Available Models

Measuring voltage converter E-502-P1-EU-D-I

Designed for measuring voltage of direct and alternating electric current, as well as for input, output and processing of analogue and digital information in measuring devices and systems based on personal computers. Approved as a type of measuring instruments No. 70108-17

Technical Specifications

Average service life	10 a
MTBF	20000
Weight	0,3 kg
Overall dimensions	142×117×40 mm
Power consumption	6 W
DC supply voltage	8 to 30 V
Number of digital outputs	16 pc
Number of digital inputs	17 pc
DC input electrical resistance	20*10(6) ohm
In-phase noise reduction factor	70
Tolerance limits of relative basic error of ADC conversion frequency	±0,005 %
Tolerance limits of relative basic error of AC frequency reproductions	±0,005 %
Tolerance limits of relative basic error of AC voltage reproductions	from ±0.15 %
Reproduction range of AC voltage frequency	0.01 to 100
AC voltage reproduction range	0.001 to 3.5 V
Tolerance limits of the reduced basic error of DC voltage reproductions	±0,1 %
DC voltage reproduction range	-5 to +5 V
Tolerance limits of relative basic error of AC voltage measurements	from ±0.15 %
Frequency range of AC voltage	0.01 to 999
AC voltage measurement range	0.0002 to 7 V
Tolerance limits of the reduced basic error of DC voltage measurements	from ±0.05 %
DC voltage measurement range	-10 to +10 V

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
